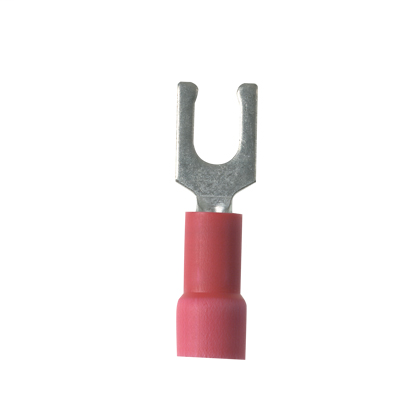

PAN PV18-8LFX-CY LkgForkTerm,Vyl,22
$84.40/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV18-8LFX-CY
North Coast Part # 683611

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Note: PV18-8LFX-CY replaces PV18-8LFX-C
  • Fork Type: Locking Fork
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #16
  • Maximum Copper Conductor Size (AWG): #16
  • Maximum Copper Conductor Size (AWG STR): #16
  • Maximum Wire Size (AWG): #16
  • Minimum Wire Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Stud Size: #8
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: UL Listed UL486A-486B ; CSA Certified C22.2 No.65
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Barrel Length (mm): 12.8
  • Barrel Length (In.): 0.51
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 4.3
  • Insulation Diameter (In.): 0.17
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Stud Hole Size (In.): 1/6
  • Stud Hole Size (mm): 4.3
  • Overall Length (In.): 1.01
  • Overall Length (mm): 25.7
  • Overall Width (In.): 0.29
  • Overall Width (mm): 7.4
  • Tongue Length (In.): 0.51
  • Tongue Length (mm): 12.8
  • Tongue Thickness (In.): 0.03
  • Sub Brand: Pan-Term
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.29
  • Tongue Width (mm): 7.4
  • Packaging Type: Bottle
  • Product Type: Loose Piece Forks
  • For use with: CT-500, CT-1550, CT-1551, CT-550

Packaging Details

  • UPC: 07498369476
  • GTIN Package: 00074983694761
  • Standard Package Volume Ft3: 0.0125
  • Standard Package Weight Pounds: 0.2700
  • Std Package Height In: 1.3
  • Std Package Height MM: 33.02
  • Std Package Length In: 4.1
  • Std Package Length MM: 104.14
  • Std Package Width In: 2
  • Std Package Width MM: 50.8
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983694766
  • Standard Carton Volume Ft3: 0.0125
  • Standard Carton Weight Pounds: 1.3500
  • Std Carton Height In: 4.2
  • Std Carton Height MM: 106.68
  • Std Carton Length In: 9.9
  • Std Carton Length MM: 104.14
  • Std Carton Width In: 2.6
  • Std Carton Width MM: 66.04
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983694761
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Categories

Overview

UPC 07498369476
GTiN 00074983694761
Finish Tin-Plated
Width 0.29 in
Color Red
Type Loose Piece Forks
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 22-16 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.01 in
Barrel Length 0.51 in
Color Coding Red
Enclosure Fork shape
Sub Brand Pan-Term
Size #8
Voltage null
UNSPSC 39121409
