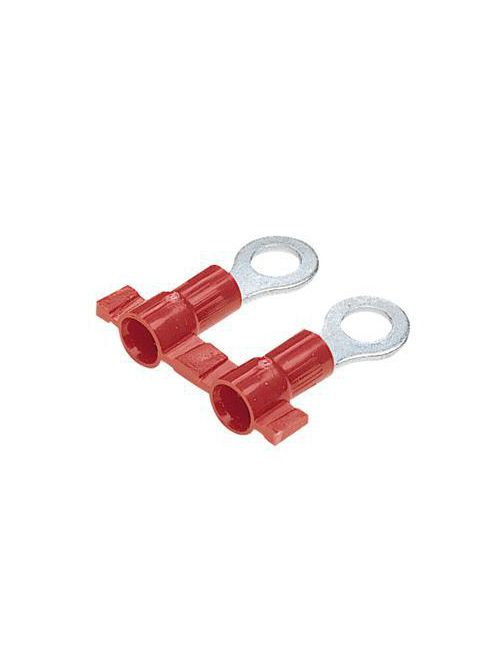

PAN PV18-8RB-3K Panduit PV18-8RB-3K

Specifications

• Product Segment: IEI
• Stud Size: #8
• Insulation Material: Vinyl
• Maximum Copper Conductor Size (AWG STR): #18
• Maximum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Maximum Metric Conductor Size (mm²): 1
• Minimum Metric Conductor Size (mm²): 0.5
• Wire Strip Length (mm): 6.4
• Wire Strip Length (In.): 1/4
• Standards Met: UL 486A/B, and CSA 22.2 No.65
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Red
• Barrel Type: Funnel
• Flammability Rating: UL94V-0
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (mm): 3.8
• Maximum Wire Insulation Diameter (In.): 0.15
• Sub Brand: Reel Smart™
• Overall Length (In.): 0.86
• Overall Length (mm): 21.8
• Overall Width (In.): 0.31
• Overall Width (mm): 7.9
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.31
• Tongue Width (mm): 7.9
• Product Type: Ring Terminal on Reel
• For Use With: Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator

Packaging Details

• UPC: 07498380350
• GTIN Package: 00074983803507
• Standard Package Volume Ft3: 0.9208
• Standard Package Weight Pounds: 8.4000
• Std Package Height In: 2.4
• Std Package Height MM: 60.96
• Std Package Length In: 26.1
• Std Package Length MM: 662.94
• Std Package Width In: 25.4
• Std Package Width MM: 645.16
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 3000
• Standard Carton Volume Ft3: 0.9208
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 662.94
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983803507
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 3,000
• Pallet Quantity: 48,000
• Pallet Volume: 0.000000
• Pallet Weight: 134.4000
