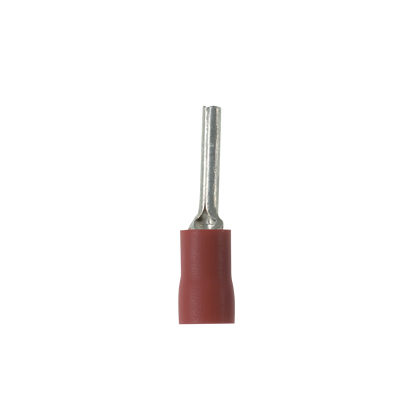

PAN PV18-P47-MY Pin Term,Vinyl,22-1

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Note: PV18-P47-MY replaces PV18-P47-M
• Pin Length (mm): 12.4
• Pin Length (In.): 0.49
• Insulation Material: Vinyl
• Maximum Wire Size (AWG): 22 - 18 AWG
• Wire Strip Length (In.): 0.31
• Wire Strip Length (mm): 7.9
• Standards Met: UL486A/B
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Red
• Barrel Type: Brazed
• Flammability Rating: UL94-V0
• Insulation Diameter (mm): 3.8
• Insulation Diameter (In.): 0.15
• Maximum Wire Insulation Diameter (In.): 0.15
• Maximum Wire Insulation Diameter (mm): 3.8
• Overall Length (mm): 24.6
• Overall Length (In.): 0.97
• Sub Brand: Pan-Term
• Packaging Type: Box
• Product Type: Loose Piece Terminal

Packaging Details

• UPC: 07498342028
• GTIN Package: 00074983420285
• Standard Package Volume Ft3: 0.0482
• Standard Package Weight Pounds: 1.8000
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 7.15
• Std Package Length MM: 181.61
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• Standard Carton Volume Ft3: 0.0482
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 181.61
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983420285
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1000
