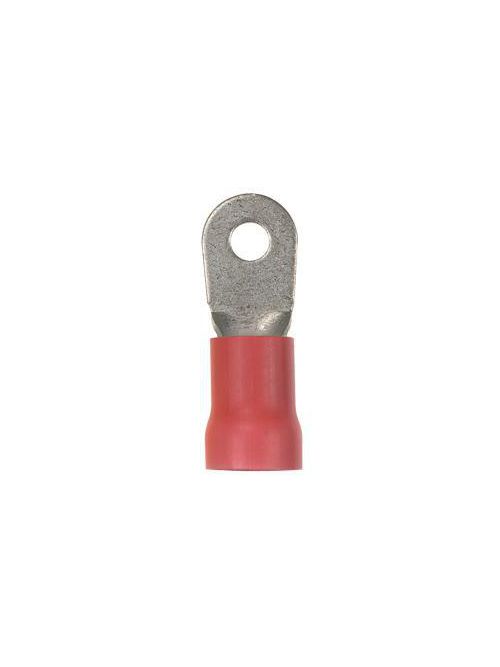

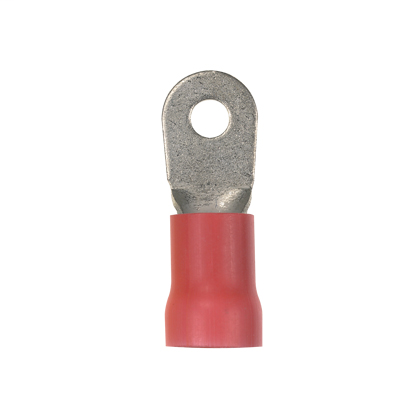

PAN PV2-14R-XY Ring Terminal,Vinyl,
$484.49/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 10 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV2-14R-XY
North Coast Part # 759466

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Note: PV2-14R-XY replaces PV2-14R-X
  • Stud Hole Size (In.): 27/100
  • Stud Hole Size (mm): 6.8
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #2
  • Maximum Copper Conductor Size (AWG): #2
  • Maximum Copper Conductor Size (AWG SOL): #2
  • Minimum Wire Size (AWG): #2
  • Maximum Copper Conductor Size (AWG STR): #2
  • Minimum Copper Conductor Size (AWG SOL): #2
  • Minimum Copper Conductor Size (AWG): #2
  • Minimum Copper Conductor Size (AWG STR): #2
  • Wire Strip Length (mm): 12.7
  • Wire Strip Length (In.): 0.50
  • Standards Met: UL Listed 587H E52164
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel Entry
  • Barrel Length (In.): 0.81
  • Barrel Length (mm): 20.5
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (In.): 0.56
  • Insulation Diameter (mm): 14.2
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.56
  • Maximum Wire Insulation Diameter (mm): 14.2
  • Outer Diameter (In.): 0.56
  • Outer Diameter (mm): 14.2
  • Overall Length (mm): 49.8
  • Overall Length (In.): 1.96
  • Overall Width (In.): 0.68
  • Overall Width (mm): 17.3
  • Tongue Length (In.): 1.15
  • Tongue Length (mm): 29.2
  • Tongue Thickness (mm): 1.5
  • Tongue Thickness (In.): 0.06
  • Tongue Width (In.): 0.68
  • Tongue Width (mm): 17.3
  • Sub Brand: Pan-term
  • Packaging Type: Bottle
  • Product Type: Ring Terminal
  • For Use With: CT-720, CD-720PV8-2

Packaging Details

  • UPC: 07498369492
  • GTIN Package: 00074983694921
  • Standard Package Volume Ft3: 0.0009
  • Standard Package Weight Pounds: 0.3000
  • Std Package Height In: 2.15
  • Std Package Height MM: 54.61
  • Std Package Length In: 4.15
  • Std Package Length MM: 105.41
  • Std Package Width In: 2.05
  • Std Package Width MM: 52.07
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • GTIN Carton: 50074983694926
  • Standard Carton Volume Ft3: 0.0009
  • Standard Carton Weight Pounds: 3.0000
  • Std Carton Height In: 4.3
  • Std Carton Height MM: 109.22
  • Std Carton Length In: 10.55
  • Std Carton Length MM: 105.41
  • Std Carton Width In: 4.35
  • Std Carton Width MM: 110.49
  • Std Ctn Qty: 100
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983694921
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 10

Overview

UPC 07498369492
GTiN 00074983694921
Finish Tin-Plated
Width 0.68 in
Size 1/4"
Color Red
Type Ring Terminal
Barrel Type Funnel Entry
Material Copper
Country of Origin MX
Wire Size 2 AWG
Temperature Rating 221 F
Pkg Qty 10
Family Brand Name Panduit
Carton Qty 100
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.96 in
Barrel Length 0.81 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-term
CA Prop65 Warning No
Voltage null
