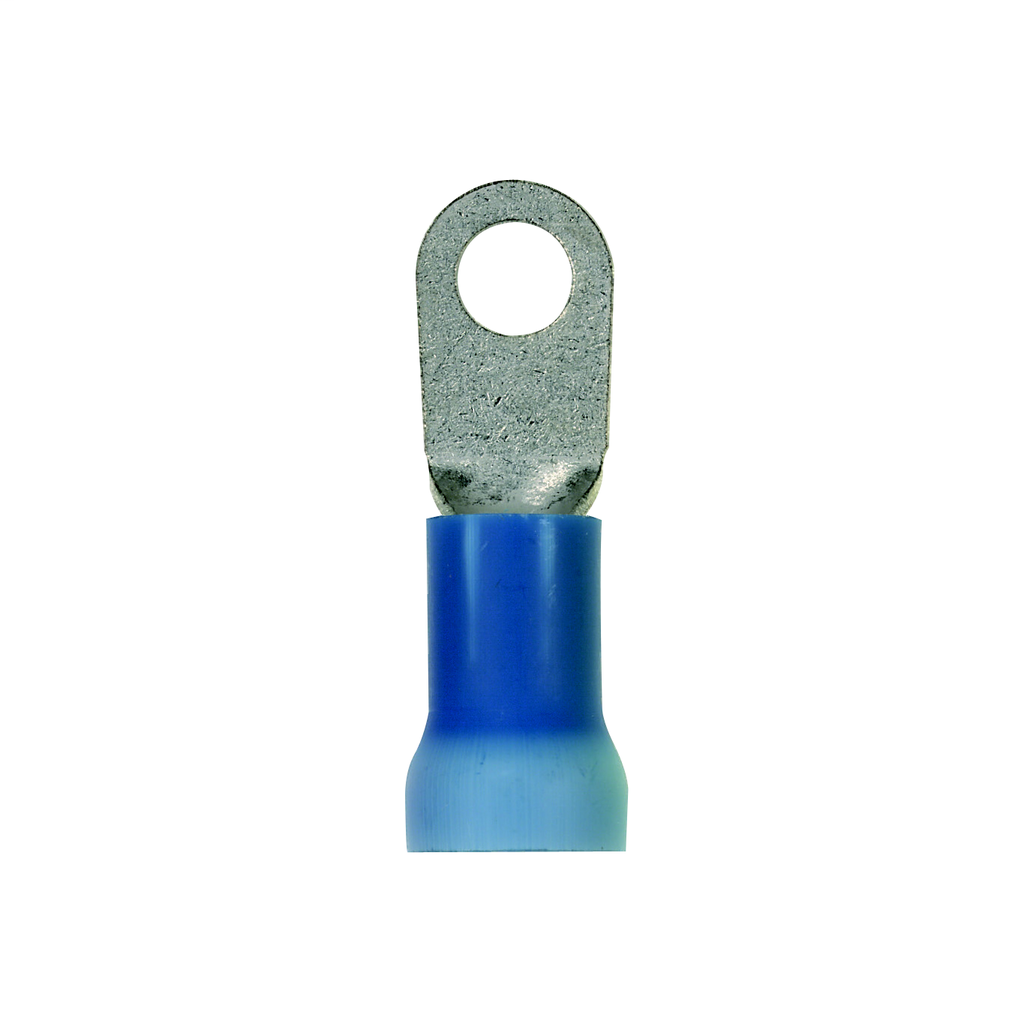

PAN PV6-12RX-X RingTerm,VylExp,6AWG

Specifications

• Packaging Type: Bottle
• Brand Name: Panduit
• Flammability Rating: UL 94V-0
• Wire Range: 6 AWG
• Type: Insulation Support, Brazed Seam
• Length (mm): 46.5
• Sub Brand: Type PV-RX
• Order Multiple Quantity Each: 1
• Note: replaces PV6-12RX-E
• Width (In.): 0.82
• Order Min Qty Each: 1
• Length (In.): 1.83
• Tool: CT-720 With Die Insert CD-720PV8-2, CT-2600 With Die Insert CD-2600-PV6
• Base Material: Copper
• Stud Size: 1/2"
• Width (mm): 20.8

Packaging Details

• Std Package Length: 4
• Std Package Height MM: 50.8
• GTIN Package: 00074983124596
• Std Carton Height MM: 109.22
• UNSPSC Piece UOM: EA
• Std Package Length MM: 101.6
• Std Package Width: 2
• UNSPSC Carton Description: CARTON
• GTIN Carton: 50074983124591
• UNSPSC Piece Desription: EACH
• UNSPSC Package Description: PACKAGE
• Std Carton Width: 3.7
• UNSPSC Package UOM: PK
• Std Carton Height: 4.3
• Sell Pack Packaging Description: BTL
• Ship Pack Packaging Description: BTL
• Std Carton Width MM: 93.98
• Std Carton Length MM: 276.86
• Sell Pkg Qty 1: 1
• Std Package Width MM: 50.8
• Std Package Height: 2
• Std Carton Length: 10.9
• UNSPSC Carton UOM: CT
• Part Number Full UPC: 7498312459
• Minimum Order Quantity: 10
• Standard Package Quantity: 10
• Stanard Carton Quantity: 100
• Standard Package Weight: 0.18
• Standard Carton Weight: 1.8

Certifications & Approvals

• CSA Certified: C22.2 No. 65
• CE Compliant: No
• UL Listed: UL486A-486B
• CE Marking: No
• ECCN Commodity Code: EAR99
• ARRA Compliant: Y
• Buy American Compliant: Y
• MSDS Indicator: N
• Ozone Depleting Compounds: N
• RoHS Compliancy Status: Compliant

Additional Specifications

• Lowest Level UOM: EA
• Panduit Color Code: Blue
• Shelf Life: 0
• Master Pack Packaging Description: PKG
• UOM EA Pk: PK
• Max. Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Strip Length (mm): 11.11
• Clearance: 0.53
• Stud Hole Size (mm): M12
• Country of Origin Description: Mexico
• Stud Size Metric: M12
• CA-800/EZ Series Crimp Die: —
• NMFC Rate: 70
• Wire Range (mm²): 16
• Stock (mm): 1.3
• Product Group Assignment: Terminals
• Master Pack Quantity: 10
• Gross Volume UOM: CU
• Model (Design): connector
• Hazardous Material Flag: N
• Max. Ins. (mm): 11.1
• Insulation: Vinyl
• Plating Type: Tinned
• Wire Strip Length (In.): 7/16" (.4375)
• Barrel Type: Insulation Support, Brazed Seam
• Unit Weight: .018
• Surface Treatment: Tinned
• Max. Ins.: 0.436
• Barrel Configuration: Expanded Entry
• Stock: 0.05
• UNSPSC: 39121409
• Part Number Series: PV-RX
• REACH Status: FALSE
• Unit Volume: .001
• Clearance (mm): 13.5
• Mil. Std. Part Number: —
• Country of Origin 2Digit: MX
• Max. Insulation Diameter In. (mm): 0.436 (11.1)
• CA9 Series Crimp Die: —
