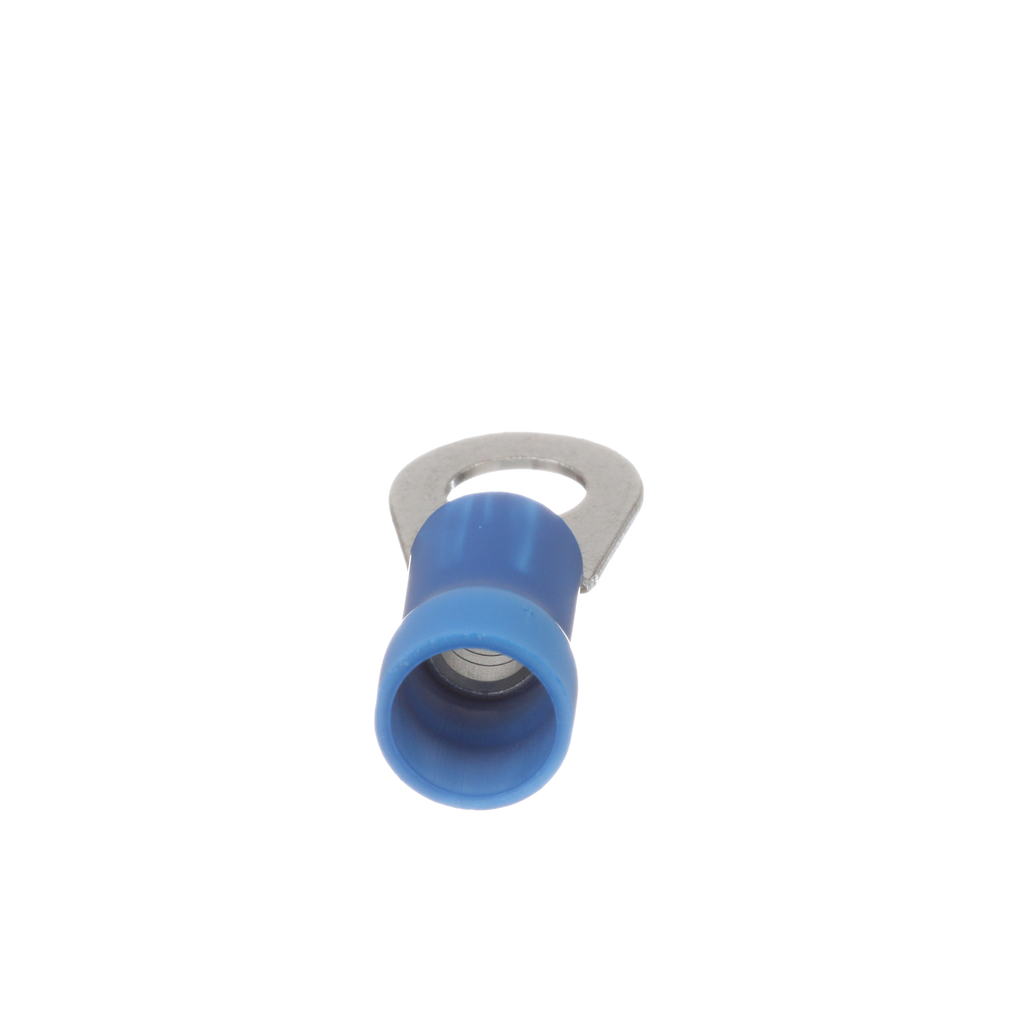

PAN PV6-56R-T RingTerm,Vyl,6AWG,5/1

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Stud Hole Size (In.): 33/100
• Stud Hole Size (mm): 8.4
• Insulation Material: Vinyl
• Maximum Copper Conductor Size (AWG): #6
• Maximum Wire Size (AWG): #6
• Maximum Copper Conductor Size (AWG SOL): #6
• Maximum Copper Conductor Size (AWG STR): #6
• Minimum Wire Size (AWG): #6
• Minimum Copper Conductor Size (AWG): #6
• Minimum Copper Conductor Size (AWG STR): #6
• Minimum Copper Conductor Size (AWG SOL): #6
• Wire Strip Length (mm): 10.9
• Wire Strip Length (In.): 0.43
• Standards Met: UL Listed 587H E52164
• Maximum Voltage (kV): 0.6
• Base Material: Copper
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Color Code: Blue
• Barrel Type: Funnel Entry
• Barrel Length (mm): 18.2
• Barrel Length (In.): 0.72
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 8.6
• Insulation Diameter (In.): 0.34
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (mm): 8.6
• Maximum Wire Insulation Diameter (In.): 0.34
• Outer Diameter (In.): 0.34
• Outer Diameter (mm): 8.6
• Overall Length (mm): 44.1
• Overall Length (In.): 1.74
• Overall Width (mm): 15.7
• Overall Width (In.): 0.62
• Tongue Length (In.): 1.02
• Tongue Length (mm): 25.9
• Tongue Thickness (mm): 1.1
• Tongue Thickness (In.): 0.05
• Tongue Width (In.): 0.62
• Tongue Width (mm): 15.7
• Sub Brand: Pan-term
• Packaging Type: Box
• Product Type: Loose Piece Ring Terminal
• For Use With: CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV6)

Packaging Details

• UPC: 07498387122
• GTIN Package: 00074983871223
• Standard Package Volume Ft3: 0.5282
• Standard Package Weight Pounds: 2.5800
• Std Package Height In: 3.45
• Std Package Height MM: 87.63
• Std Package Length In: 8.1
• Std Package Length MM: 205.74
• Std Package Width In: 4.4
• Std Package Width MM: 111.76
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 200
• Standard Carton Volume Ft3: 0.5282
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 205.74
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983871223
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 200
