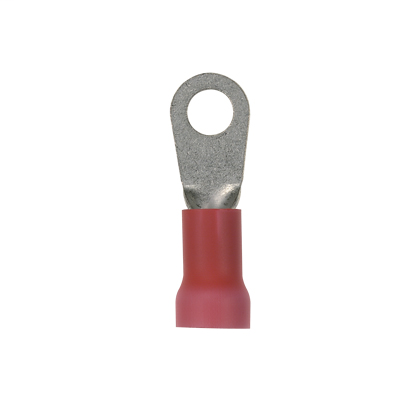

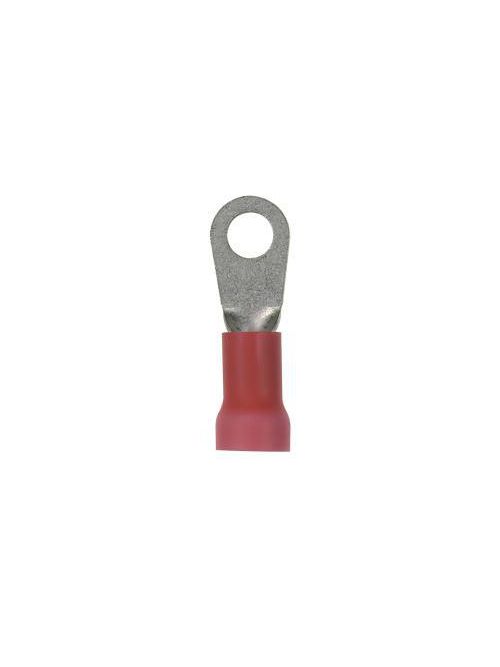

PAN PV8-10RX-TY Panduit PV8-10RX-TY
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$986.60/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV8-10RX-TY
North Coast Part # 763036

Specifications

  • Product Segment: IEI
  • Note: PV8-10RX-TY replaces PV8-10RX-T
  • Stud Size: #10
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #8
  • Minimum Wire Size (AWG): #8
  • Wire Strip Length (In.): 3/8
  • Wire Strip Length (mm): 9.5
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.36
  • Maximum Wire Insulation Diameter (mm): 9.1
  • Seam Type: Brazed
  • Sub Brand: Pan-Term®
  • Overall Length (In.): 1.52
  • Overall Length (mm): 38.6
  • Overall Width (mm): 11.9
  • Overall Width (In.): 0.47
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (In.): 0.47
  • Tongue Width (mm): 11.9
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-720 (CD-720PV8-2); CT-2600/L (CD-2600-PV8)

Packaging Details

  • UPC: 07498342137
  • GTIN Package: 00074983421374
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 1.8000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 200
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983421374
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 200
  • Pallet Quantity: 132,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,188.0000

Overview

GTiN 00074983421374
Finish Tin-Plated
Width 0.47 in
Color Red
Type Loose Piece Ring Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 8 AWG
Temperature Rating 221 F
Pkg Qty 200
Family Brand Name Panduit
TC Connection Expanded Entry
Max Operating Temperature 221 degrees F
Overall Length 1.52 in
Barrel Length 0.65 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-term
Product UPC 07498342137
Size NA
Voltage 600 Volt
