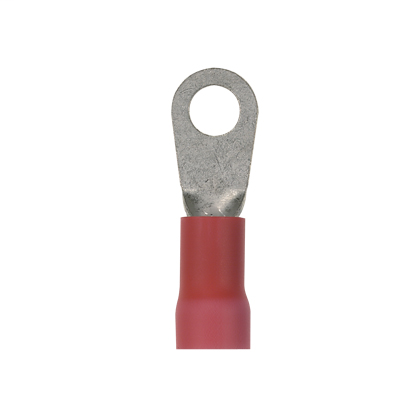

PAN PV8-38R-TY RingTerm,Vyl,8AWG,3/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,143.22/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV8-38R-TY
North Coast Part # 666081

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Note: PV8-38R-TY replaces PV8-38R-T
  • Stud Size: 3/8"
  • Stud Hole Size (mm): 9.9
  • Stud Hole Size (In.): 39/100
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #8
  • Maximum Copper Conductor Size (AWG): #8
  • Maximum Copper Conductor Size (AWG SOL): #8
  • Minimum Wire Size (AWG): #8
  • Maximum Copper Conductor Size (AWG STR): #8
  • Minimum Copper Conductor Size (AWG STR): #8
  • Minimum Copper Conductor Size (AWG SOL): #8
  • Minimum Copper Conductor Size (AWG): #8
  • Wire Strip Length (In.): 0.38
  • Wire Strip Length (mm): 9.5
  • Standards Met: UL Listed 587H E52164
  • Maximum Voltage (V): 221
  • Maximum Voltage (kV): 105
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.38
  • Barrel Length (mm): 9.5
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 7.1
  • Insulation Diameter (In.): 0.28
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.28
  • Maximum Wire Insulation Diameter (mm): 7.1
  • Outer Diameter (In.): 0.28
  • Outer Diameter (mm): 7.1
  • Sub Brand: Pan-term
  • Overall Length (In.): 1.64
  • Overall Length (mm): 41.7
  • Overall Width (In.): 0.59
  • Overall Width (mm): 15
  • Tongue Length (mm): 32
  • Tongue Length (In.): 1.26
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (In.): 0.59
  • Tongue Width (mm): 15
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV8)

Packaging Details

  • UPC: 07498341421
  • GTIN Package: 00074983414215
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 1.8000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 7.1
  • Std Package Length MM: 180.34
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 200
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 180.34
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983414215
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 200

Overview

UPC 07498341421
Item Long Description Ring Terminal, large wire, 8 AWG, 3/8" stud size, vinyl insulated, bulk package.
GTiN 00074983414215
Finish Tin-Plated
Width 0.59 in
Size M10
Color Red
Type Loose Piece Ring Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 8 AWG
Temperature Rating 221 F
Pkg Qty 200
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.64 in
Barrel Length 0.38 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-term
Voltage 600 Volt
UNSPSC 39121409
