PAN PWMS-H25-M Panduit PWMS-H25-M W

$268.22/m (1000 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Product Segment: IEI

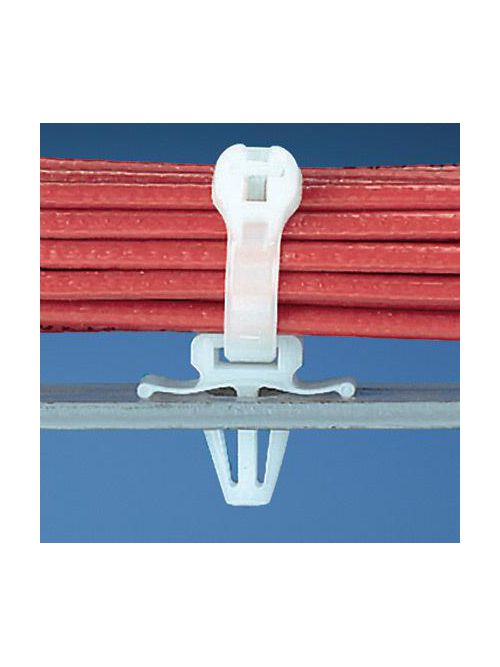

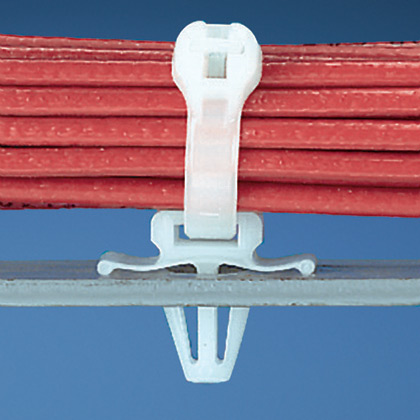

Application: Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
Product Type: Cable Tie Mount
Color: Natural
Environment: Indoor
Material: Nylon 6.6
Maximum Compatible Panel Thickness (mm): 2.8
Maximum Compatible Panel Thickness (In.): 0.11
Maximum Operating Temperature (°F): 185
Maximum Operating Temperature (°C): 85
Minimum Operating Temperature (°F): -76
Minimum Operating Temperature (°C): -60
Mount Method: Push Barb
Overall Height (In.): 0.62
Overall Height (mm): 15.7
Overall Length (In.): 0.71
Overall Length (mm): 18
Overall Width (In.): 0.37
Overall Width (mm): 9.4
Standards Met: CE Compliant,UL Recognized: E136577, RoHS Compliant

UPC	07498358375
Item Long Description	Panduit PWMS-H25-M winged push barb cable ties are designed for mounting a cable into a pre-drilled hole sized .229" to .255" (5.8mm - 6.5mm) and for maximum panel thickness of .105" (2.7mm). Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. For use with miniature, intermediate, and standard cross-section cable ties. They are natural in color and come in packages of 1000.
GTiN	00074983583751
Width	0.37 in
Color	Natural
Operating Temperature	-60C - 85C
Type	Cable Tie Mount
Material	Nylon
Applications	Indoor
Height	0.62 in
Country of Origin	US
Pkg Qty	1000
Family Brand Name	Panduit
Max Operating Temperature	185 degrees F
Overall Length	0.71 in
Min Operating Temperature	-76 degrees F
Sub Brand	Cable Tie Mount
CA Prop65 Warning	No
Mounting Type	Push Barb
