PAN R100X150V1T Panduit R100X150V1T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$217.60/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # R100X150V1T
North Coast Part # 933454

Specifications

  • Product Segment: IEI
  • Sub Brand: Turn-Tell®

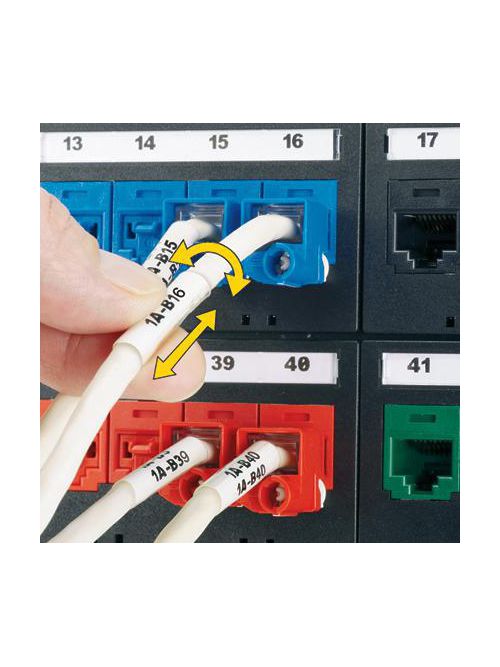

  • Product Type: Turn-Tell Label
  • Note: For use with TDP printers
  • Cable Type: Category 5e/6/6e/Category 5e FTP
  • Color: White
  • Material: Vinyl
  • Printer Type: Thermal Transfer
  • Standards Met: RoHS Compliant
  • Compatible Wire Gauge (AWG): 10-6
  • Maximum Cable Diameter (In.): 0.28
  • Maximum Cable Diameter (mm): 7.1
  • Minimum Cable Diameter (mm): 5.6
  • Minimum Cable Diameter (In.): 0.22
  • Overall Length (mm): 38.1
  • Overall Length (In.): 1.5
  • Overall Width (In.): 1
  • Overall Width (mm): 25.4
  • Print-On Area Height (In.): 0.5
  • Print-On Area Height (mm): 12.7
  • Maximum Operating Temperature (°F): 150
  • Maximum Operating Temperature (°C): 66
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Number of Labels: 2500

Packaging Details

  • UPC: 07498321933
  • GTIN Package: 00074983219339
  • Standard Package Volume Ft3: 0.6347
  • Standard Package Weight Pounds: 2.3300
  • Std Package Height In: 4.95
  • Std Package Height MM: 125.73
  • Std Package Length In: 7.05
  • Std Package Length MM: 179.07
  • Std Package Width In: 6.7
  • Std Package Width MM: 170.18
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2500
  • Standard Carton Volume Ft3: 0.6347
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 179.07
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983219339
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2,500

Overview

UPC 07498321933
GTiN 00074983219339
Length 38.1 mm
Width 1 in
Size 7.1 mm
Color White
Type Turn-Tell Label
Material Vinyl
Cable Type Category 5e/6/6e/Category 5e FTP
Height 0.5 in
Country of Origin US
Pkg Qty 2500
Family Brand Name Panduit
Carton Qty 0
Max Operating Temperature 150 degrees F
Overall Length 1.5 in
Min Operating Temperature -40 degrees F
Sub Brand Turn-Tell
