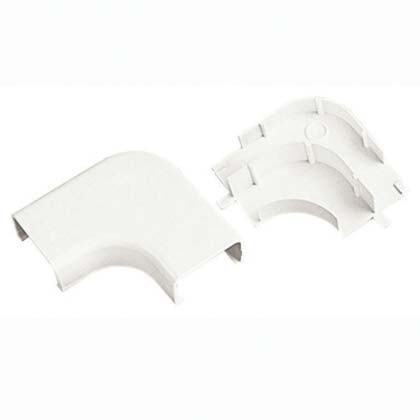

Panduit RAFX3IW-X LDS3 / LDPH3 Power Rated Right Angle Fitting
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # RAFX3IW-X
North Coast Part # 66546


  • Product Segment: EDI-ENT
  • UNSPSC: 39131711
  • Product Type: Power Rated Fittings
  • Sub Brand: Pan-Way
  • Color: Off-White
  • Fitting Type: Right Angle
  • For Use With: LDPH3, LDS3
  • Material: Rigid PVC
  • Mount Method: Snap-On
  • Raceway Type: Power Rated
  • Standards Met: Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
  • Overall Height (In.): 0.47
  • Overall Height (mm): 11.9
  • Overall Length (In.): 2.23
  • Overall Length (mm): 56.6
  • Overall Width (mm): 56.7
  • Overall Width (In.): 2.23
  • Application: Pan-Way ® LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.

Packaging Details

  • UPC: 07498352997
  • GTIN Package: 30074983529972
  • Standard Package Volume Ft3: 0.0802
  • Standard Package Weight Pounds: 0.3300
  • Std Package Height In: 4.5
  • Std Package Height MM: 114.3
  • Std Package Length In: 6.85
  • Std Package Length MM: 173.99
  • Std Package Width In: 4.2
  • Std Package Width MM: 106.68
  • Std. Pkg. UOM: Piece
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0802
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 173.99
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 30074983529972
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10


UPC 07498352997
Item Long Description Right angle fitting for use with LDPH3 and LDS3 raceway, Off White, ABS, Length 2.23 in.
GTiN 00074983529971
Length 2.23 in
Width 2.23 in
Color Off-White
Type Power Rated, Flat
Material ABS
Height 0.47 in
Country of Origin Costa Rica
Pkg Qty 10
Family Brand Name Panduit
Overall Length 2.23 in
Cover Type Right Angle
Sub Brand Pan-Way
CA Prop65 Warning No
Applications For Routing Both Power and Data Cabling Along Perimeter Walls
Blade Dimensions 2.23 in L x 2.23 in W x 0.47 in H
Used With LDPH3 and LDS3 Raceway
UNSPSC 39131711
Mounting Type Snap-On
