Panduit S100X150VATY 5000/Pack 1.5 x 1 Inch White Vinyl Thermal Transfer Self Laminating Label
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$55.04/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # S100X150VATY
North Coast Part # 601494

Specifications

  • Product Segment: IEI
  • Note: S100X150VATY replaces TTSL2PO3-10 , TTSL2PO3-5 , TTSL2VC3-10 , TTSL2VC3-5 , TTSL3PO3-1 , TTSL54TC3-5 , TTSL60TC3-5 , TTSL9025TC3-10 and TTSL94VC3-5. For use with TDP printers.
  • Product Type: Self-Laminating Label
  • Cable Type: Category 5e UTP;Category 6 UTP;Category 6A UTP; Category 5e FTP
  • Color: White
  • Material: Vinyl
  • Printer Type: Thermal Transfer
  • Sheet Size: NA
  • Standards Met: RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
  • Sub Brand: Pan-Code®
  • Compatible Wire Gauge (AWG): 10 – 6
  • Maximum Cable Diameter (In.): 0.32
  • Maximum Cable Diameter (mm): 8.1
  • Minimum Cable Diameter (In.): 0.16
  • Minimum Cable Diameter (mm): 4.1
  • Maximum Operating Temperature (°F): 150
  • Maximum Operating Temperature (°C): 66
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Number of Labels: 5000
  • Overall Length (mm): 38.1
  • Overall Length (In.): 1.5
  • Overall Width (mm): 25.4
  • Overall Width (In.): 1
  • Print-On Area Height (mm): 12.7
  • Print-On Area Height (In.): 0.5

Packaging Details

  • UPC: 07498343951
  • GTIN Package: 00074983439515
  • Standard Package Volume Ft3: 0.7051
  • Standard Package Weight Pounds: 3.0000
  • Std Package Height In: 6.9
  • Std Package Height MM: 175.26
  • Std Package Length In: 7.05
  • Std Package Length MM: 179.07
  • Std Package Width In: 6.9
  • Std Package Width MM: 175.26
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 5000
  • Standard Carton Volume Ft3: 0.7051
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 179.07
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983439515
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 5,000
  • Pallet Quantity: 1,200,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 720.0000

Overview

UPC 07498343951

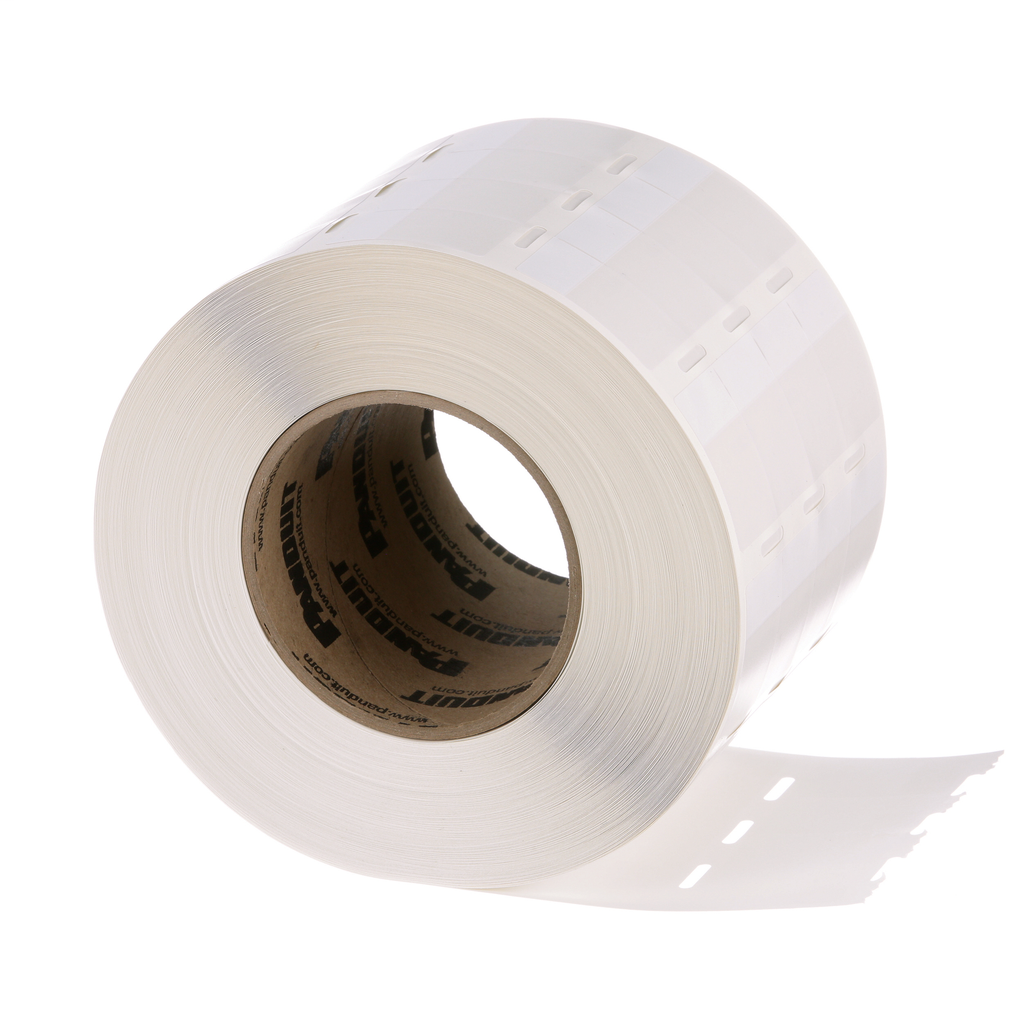

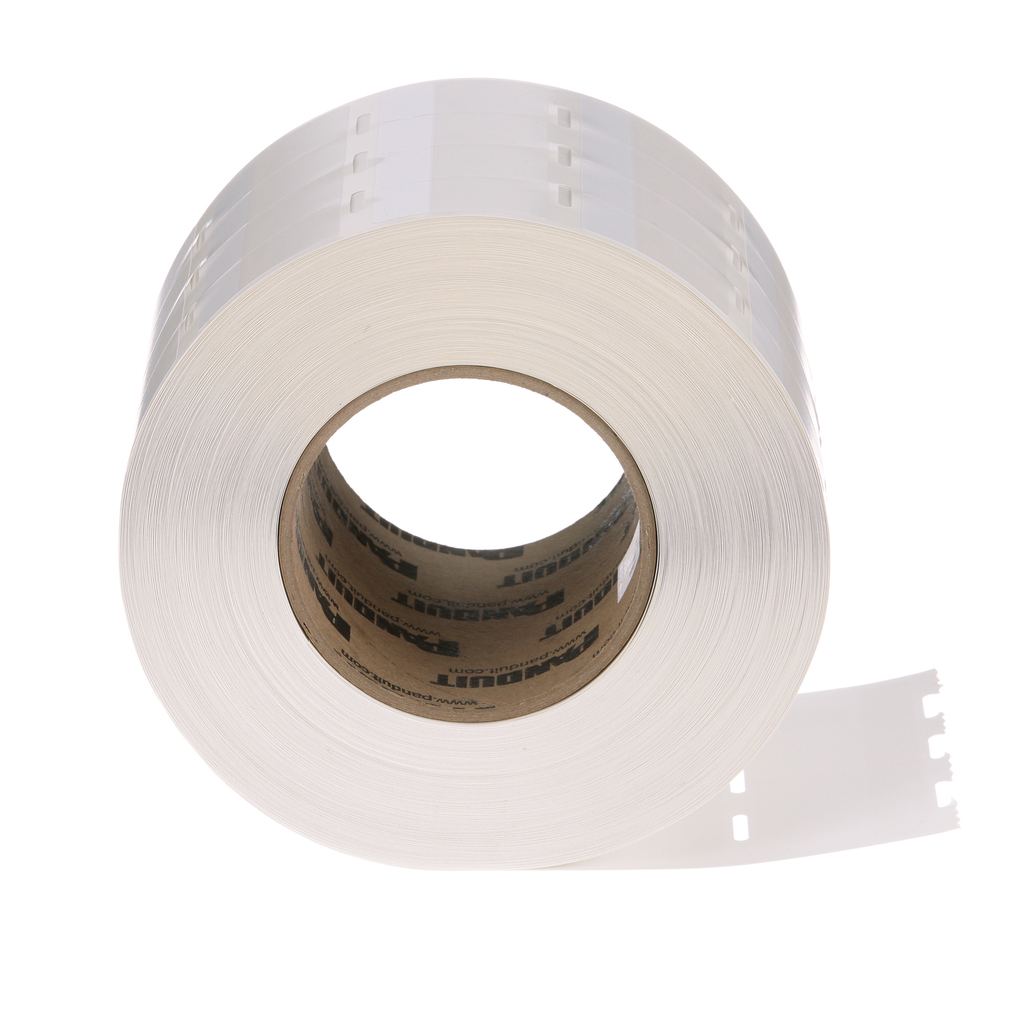

Item Long Description The S100X150VATY Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150F (65C). 1.0" x 1.5" (25.4 x 38.1 mm) with a 3.0" (76.2 mm) core. Color White. 5000 per package.
GTiN 00074983439515
Length 38.1 mm
Width 1 in
Color White
Type Self-Laminating Label
Material Vinyl
Country of Origin US
Cable Size 4 - 8.1 mm
Pkg Qty 5000
Family Brand Name Panduit
Standard Packaging Qty 5000/Pack
Sub Brand Pan-Code
