PAN S100X400YAJ Panduit S100X400YAJ
Product image thumbnail 0
Product image thumbnail 1
$228.57/m (1000 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # S100X400YAJ
North Coast Part # 666087

Specifications

  • Product Segment: IEI
  • Product Type: Self-Laminating Label
  • Note: S100X400YAJ replaces LJSL6-Y3-1
  • Color: White
  • Material: Polyester
  • Printer Type: Laser/Inkjet
  • Sheet Size: Letter
  • Standards Met: RoHS Compliant, UL recognized, UL969, File # MH14979. Meets ASTM E-595 for air space handling (white only).
  • Sub Brand: Pan-Code®
  • Compatible Wire Gauge (AWG): 2 – 1
  • Maximum Cable Diameter (In.): 0.95
  • Maximum Cable Diameter (mm): 24.1
  • Minimum Cable Diameter (mm): 8.1
  • Minimum Cable Diameter (In.): 0.32
  • Maximum Operating Temperature (°C): 107
  • Maximum Operating Temperature (°F): 225
  • Minimum Operating Temperature (°F): -65
  • Minimum Operating Temperature (°C): -54
  • Number of Labels: 1000
  • Overall Length (mm): 101.6
  • Overall Length (In.): 4
  • Overall Width (In.): 1
  • Overall Width (mm): 25.4
  • Print-On Area Height (In.): 1
  • Print-On Area Height (mm): 25.4

Packaging Details

  • UPC: 07498350592
  • GTIN Package: 00074983505920
  • Standard Package Volume Ft3: 0.1492
  • Standard Package Weight Pounds: 1.5000
  • Std Package Height In: 1.4
  • Std Package Height MM: 35.56
  • Std Package Length In: 12.3
  • Std Package Length MM: 312.42
  • Std Package Width In: 9
  • Std Package Width MM: 228.6
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983505925
  • Standard Carton Volume Ft3: 0.1492
  • Standard Carton Weight Pounds: 7.5000
  • Std Carton Height In: 9.3
  • Std Carton Height MM: 236.22
  • Std Carton Length In: 14.25
  • Std Carton Length MM: 312.42
  • Std Carton Width In: 9.45
  • Std Carton Width MM: 240.03
  • Std Ctn Qty: 5000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983505920
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498350592

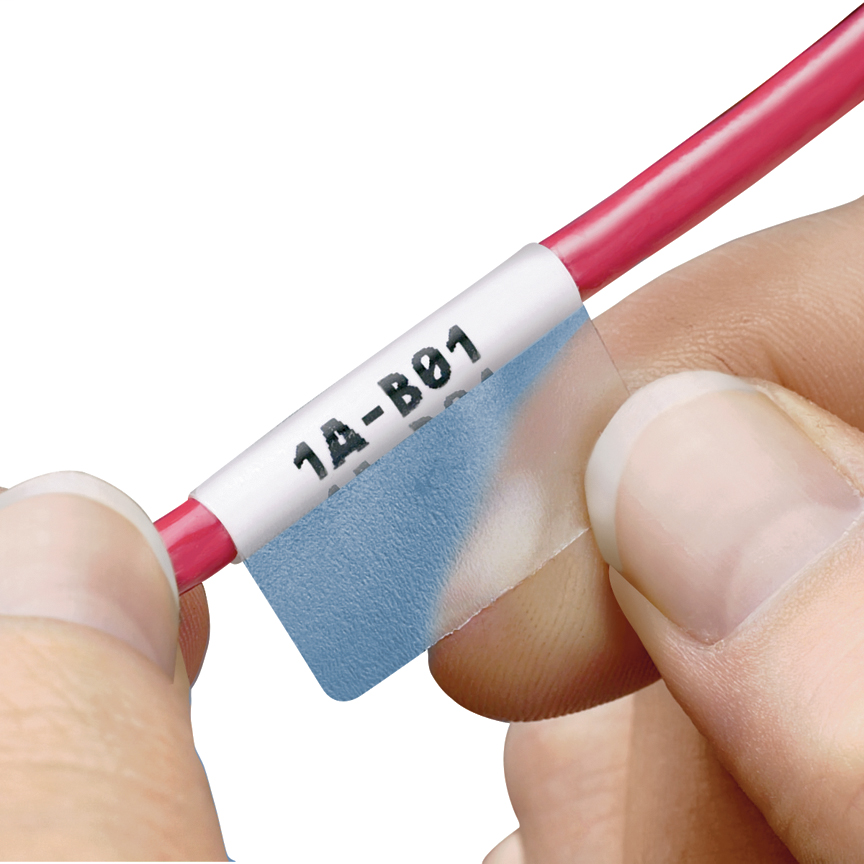

Item Long Description The S100X400YAJ Laser/Inkjet Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and laser/inkjet printers. Polyester. 1" x 4" (25.4 mm x 101.6 mm). Color Clear/White. 1000 labels per package.
GTiN 00074983505920
Length 4 in
Width 1 in
Size 1.00 x 4.00 x 1.00 IN
Color White
Type Self-Laminating Label
Material Polyester
Country of Origin US
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 225 degrees F
Overall Length 4 in
Min Operating Temperature -65 degrees F
Legend Without imprint
Sub Brand Pan-Code
