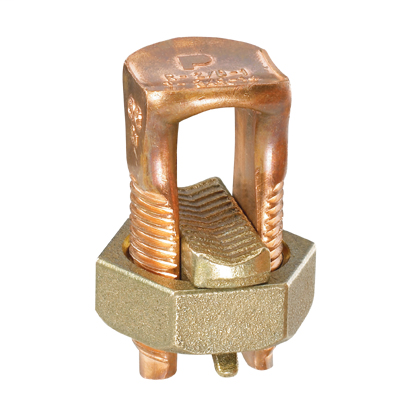

Panduit SBC6S-C #8 Str - #6 Sol AWG Copper Split Bolt
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$577.45/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SBC6S-C
North Coast Part # 17514

Specifications

  • Product Segment: IEI
  • Product Type: Mechanical Connectors - Split Bolt
  • Connection Type: Copper to Copper
  • Base Material: Copper
  • Minimum Copper Conductor Size (AWG SOL): 8
  • Maximum Copper Conductor Size (AWG SOL): 6
  • Standards Met: UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (V): 600
  • Overall Height (In.): 0.95
  • Overall Height (mm): 24.13
  • Sub Brand: Pan-Lug™

Packaging Details

  • UPC: 07498390403
  • GTIN Package: 00074983904037
  • Standard Package Volume Ft3: 0.0528
  • Standard Package Weight Pounds: 5.8900
  • Std Package Height In: 3.3
  • Std Package Height MM: 83.82
  • Std Package Length In: 5.8
  • Std Package Length MM: 147.32
  • Std Package Width In: 3.45
  • Std Package Width MM: 87.63
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • Standard Carton Volume Ft3: 0.0528
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 147.32
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: BR
  • RoHS Compliant: Compliant
  • EAN: 00074983904037
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498390403
Item Long Description The SBC6S-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
GTiN 00074983904037
Finish Unplated
Type Type SBC, Extra Long Body
Material Copper
Country of Origin BR
Pkg Qty 100
Family Brand Name Panduit
Conductor Type Copper
Overall Length 0.95 in
Sub Brand Pan-Lug
Voltage 600 Volt
