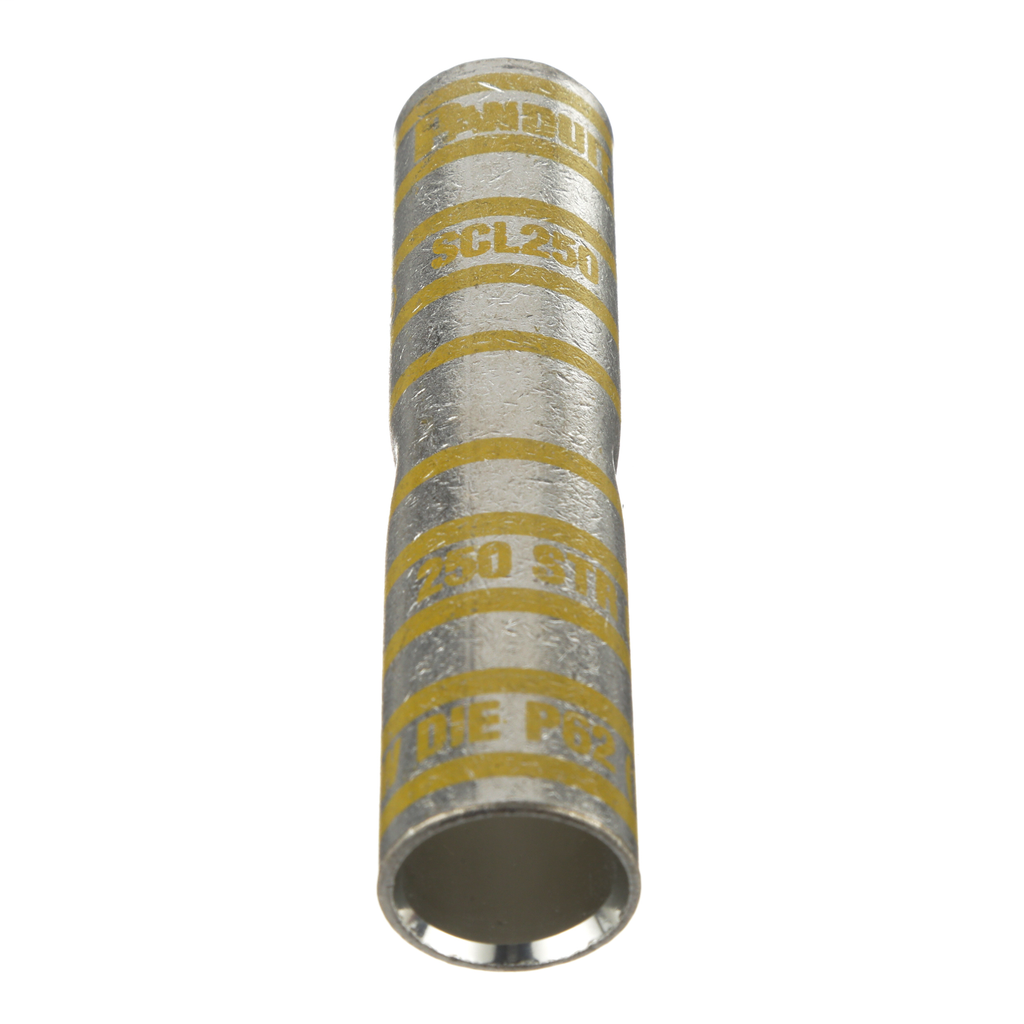

Panduit SCL250-X Long Barrel Copper Compression Butt Splice

Specifications

• Product Segment: IEI
• UNSPSC: 39121449
• Product Type: Compression Connectors - Splices
• Sub Brand: Pan-Lug
• Copper Conductor Size (AWG): 5/0
• Copper Code Conductor Size (kcmil): 250
• Copper Conductor Size (kcmil): 266.8
• Barrel Type: Standard
• Maximum Voltage (kV): 35
• Base Material: Copper
• Standards Met: UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Panduit Die Index Number: P62
• Burndy Die Index Number: 16
• Overall Length (mm): 85.9
• Overall Length (In.): 3.38
• Wire Strip Length (In.): 1 5/8
• Wire Strip Length (mm): 41.3
• UL Temperature Rating (°C): 90
• UL Temperature Rating (°F): 194
• CSA Temperature Rating (°F): 194
• CSA Temperature Rating (°C): 90

Packaging Details

• UPC: 07498390445
• GTIN Package: 00074983904457
• Standard Package Volume Ft3: 0.0328
• Standard Package Weight Pounds: 1.8000
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 4.7
• Std Package Length MM: 119.38
• Std Package Width In: 3.45
• Std Package Width MM: 87.63
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• Standard Carton Volume Ft3: 0.0328
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 119.38
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983904457
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 0
• Pallet Volume: 0.000000
• Pallet Weight: 0.0000
