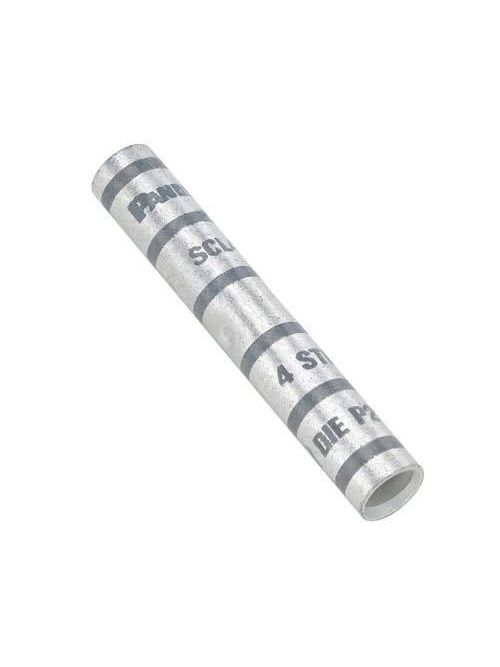

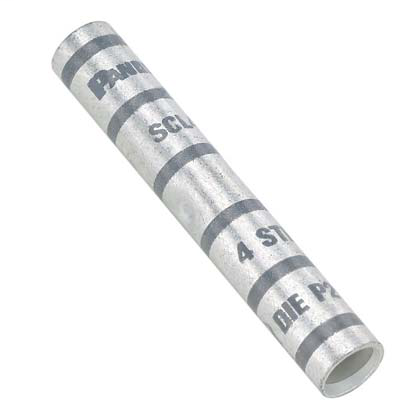

Panduit SCL300-X Long Barrel Copper Compression Butt Splice
$2,653.10/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SCL300-X
North Coast Part # 601519

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121449
  • Product Type: Compression Connectors - Splices
  • Sub Brand: Pan-Lug
  • Copper Conductor Size (kcmil): 336.4
  • Copper Code Conductor Size (kcmil): 300
  • Copper Conductor Size (AWG): 6/0
  • Barrel Type: Standard
  • Maximum Voltage (kV): 35
  • Base Material: Copper
  • Standards Met: UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding
  • Finish/Coating: Tin-Plated
  • Color Code: White
  • Panduit Die Index Number: P66
  • Burndy Die Index Number: 17
  • Overall Length (In.): 4.12
  • Overall Length (mm): 104.6
  • Wire Strip Length (mm): 50.8
  • Wire Strip Length (In.): 2
  • UL Temperature Rating (°C): 90
  • UL Temperature Rating (°F): 194
  • CSA Temperature Rating (°C): 90
  • CSA Temperature Rating (°F): 194

Packaging Details

  • UPC: 07498390450
  • GTIN Package: 00074983904501
  • Standard Package Volume Ft3: 0.0491
  • Standard Package Weight Pounds: 2.7500
  • Std Package Height In: 3.2
  • Std Package Height MM: 81.28
  • Std Package Length In: 7.8
  • Std Package Length MM: 198.12
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 10
  • Standard Carton Volume Ft3: 0.0491
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 198.12
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983904501
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498390450
GTiN 00074983904501
Finish Tin-Plated
Color White
Type Compression Connectors - Splices
Barrel Type Standard
Country of Origin MX
Pkg Qty 10
Family Brand Name Panduit
Carton Qty 0
Overall Length 4.12 in
Color Coding White
Sub Brand Pan-Lug
CA Prop65 Warning No
Size NA
UNSPSC 39121449
