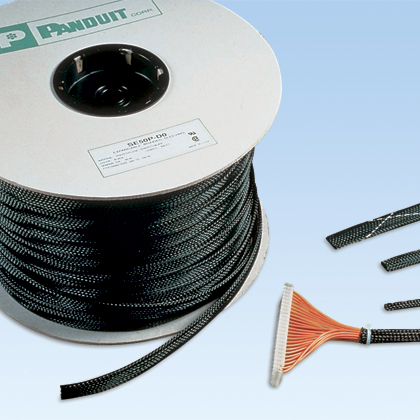

PAN SE250P-TR0 Braided Sleeve,FR, 2

Specifications

• UNSPSC: 39131602
• Product Segment: IEI
• Application: (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity, Allows for Irregular Shapes. Lightweight and Durable Protection; (3) Complaint with U.S. and European Passenger
• Material: Polyethylene Terephthalate
• Flammability Rating: UL94-HB
• Color: Black
• Standards Met: CSA Certified, UL Recognized E116868, RoHS Complaint
• Maximum Operating Temperature (°C): 125
• Minimum Operating Temperature (°C): -70
• Maximum Operating Temperature (°F): 257
• Minimum Operating Temperature (°F): -94
• Nominal Diameter (In.): 2.5
• Nominal Diameter (mm): 63.5
• Overall Length (ft.): 200
• Overall Length (m): 61
• Product Type: Pan-Wrap Braided Sleeving

Packaging Details

• UPC: 07498311815
• GTIN Package: 00074983118151
• Standard Package Volume Ft3: 0.5605
• Standard Package Weight Pounds: 9.0750
• Std Package Height In: 6.25
• Std Package Height MM: 158.75
• Std Package Length In: 10.62
• Std Package Length MM: 269.748
• Std Package Width In: 8.68
• Std Package Width MM: 220.472
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983118156
• Standard Carton Volume Ft3: 0.5605
• Standard Carton Weight Pounds: 18.1500
• Std Carton Height In: 7.9
• Std Carton Height MM: 200.66
• Std Carton Length In: 21.7
• Std Carton Length MM: 269.748
• Std Carton Width In: 11.3
• Std Carton Width MM: 287.02
• Std Ctn Qty: 2
• Min. Order UOM: Roll
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983118151
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
