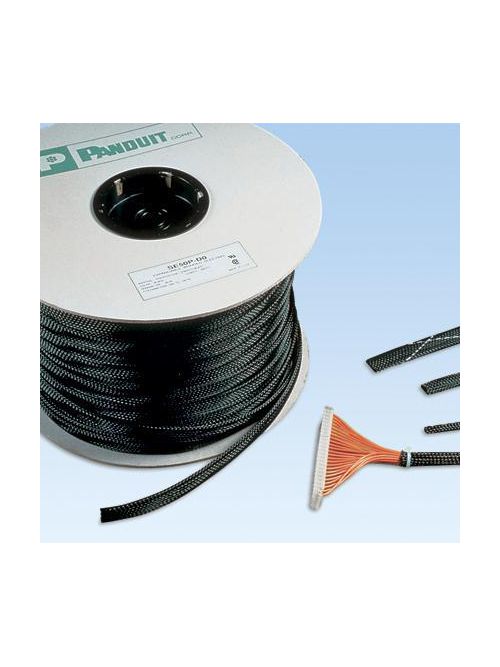

PAN SE25P-TR8 Braided Sleeve, .25"X
Product image thumbnail 0
Product image thumbnail 1
$169.99/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SE25P-TR8
North Coast Part # 605196

Specifications

  • Product Segment: IEI
  • UNSPSC: 39131602
  • Application: (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes
  • Material: Polyethylene Terephthalate
  • Flammability Rating: UL94-HB
  • Color: Gray
  • Resistance Properties: Abrasion-Resistant
  • Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint
  • Maximum Operating Temperature (°C): 125
  • Minimum Operating Temperature (°C): -70
  • Minimum Operating Temperature (°F): -94
  • Maximum Operating Temperature (°F): 257
  • Nominal Diameter (In.): 0.25
  • Nominal Diameter (mm): 6.4
  • Overall Length (m): 61
  • Overall Length (ft.): 200
  • Product Type: Braided Expandable Sleeving

Packaging Details

  • UPC: 07498337010
  • GTIN Package: 00074983370108
  • Standard Package Volume Ft3: 0.0942
  • Standard Package Weight Pounds: 1.1000
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 12.6
  • Std Package Length MM: 320.04
  • Std Package Width In: 6.6
  • Std Package Width MM: 167.64
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983370103
  • Standard Carton Volume Ft3: 0.0942
  • Standard Carton Weight Pounds: 4.4000
  • Std Carton Height In: 7.2
  • Std Carton Height MM: 182.88
  • Std Carton Length In: 13.7
  • Std Carton Length MM: 320.04
  • Std Carton Width In: 6.6
  • Std Carton Width MM: 167.64
  • Std Ctn Qty: 4
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983370108
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498337010
GTiN 00074983370108
Length 61 m
Color Gray
Type Braided Expandable Sleeving
Diameter 3.2 - 9.5 mm
Material Polyethylene Terephthalate
Applications Lightweight durable protection
Country of Origin US
Temperature Rating -94 to 257 F
Pkg Qty 1
Family Brand Name Panduit
Carton Qty 4
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
Max Operating Temperature 257 degrees F
Overall Length 200 ft
Min Operating Temperature -94 degrees F
