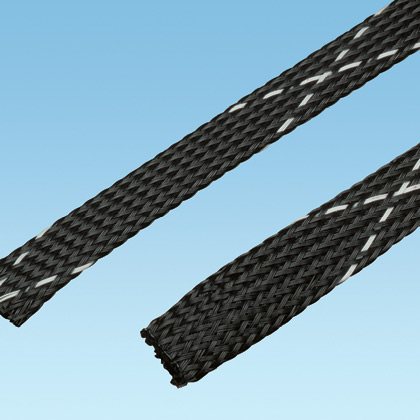

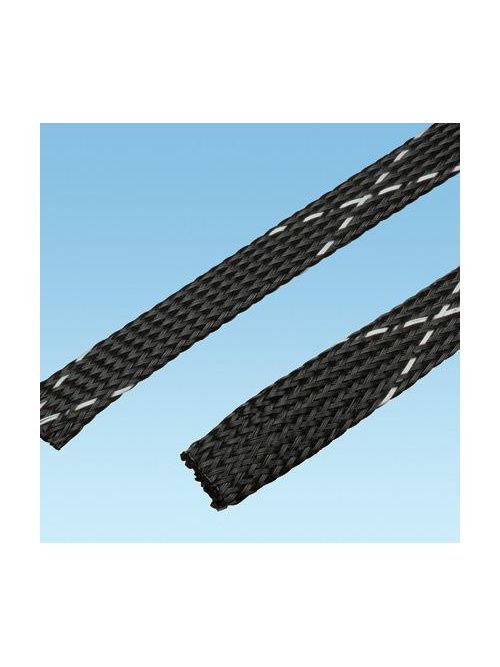

PAN SE38PFR-MR0 Panduit SE38PFR-MR0

Specifications

• Product Segment: IEI
• Application: Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
• Material: Polyethylene Terephthalate
• Flammability Rating: VW-1
• Color: Black
• Resistance Properties: Flame-Retardant
• Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
• Maximum Diameter (mm): 12.7
• Maximum Diameter (In.): 0.5
• Minimum Operating Temperature (°C): -70
• Maximum Operating Temperature (°C): 125
• Minimum Operating Temperature (°F): -94
• Maximum Operating Temperature (°F): 257
• Nominal Diameter (In.): 0.38
• Nominal Diameter (mm): 9.5
• Overall Length (ft.): 1000
• Overall Length (m): 304.8
• Product Type: Braided Expandable Sleeving

Packaging Details

• UPC: 07498321989
• GTIN Package: 00074983219896
• Standard Package Volume Ft3: 0.5630
• Standard Package Weight Pounds: 7.3250
• Std Package Height In: 7.15
• Std Package Height MM: 181.61
• Std Package Length In: 10.5
• Std Package Length MM: 266.7
• Std Package Width In: 10.45
• Std Package Width MM: 265.43
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983219891
• Standard Carton Volume Ft3: 0.5630
• Standard Carton Weight Pounds: 14.6500
• Std Carton Height In: 8.05
• Std Carton Height MM: 204.47
• Std Carton Length In: 21.8
• Std Carton Length MM: 266.7
• Std Carton Width In: 11.25
• Std Carton Width MM: 285.75
• Std Ctn Qty: 2
• Min. Order UOM: Roll
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983219896
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 96
• Pallet Volume: 54.043200
• Pallet Weight: 703.2000
