Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SE50PFR-DR0
North Coast Part # 666091


  • Product Segment: IEI
  • Application: Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
  • Material: Polyethylene Terephthalate
  • Flammability Rating: VW-1
  • Color: Black
  • Resistance Properties: Flame-Retardant
  • Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
  • Maximum Diameter (In.): 0.75
  • Maximum Diameter (mm): 19.1
  • Minimum Operating Temperature (°C): -70
  • Maximum Operating Temperature (°C): 125
  • Maximum Operating Temperature (°F): 257
  • Minimum Operating Temperature (°F): -94
  • Nominal Diameter (In.): 0.5
  • Nominal Diameter (mm): 12.7
  • Overall Length (ft.): 500
  • Overall Length (m): 152.4
  • Product Type: Braided Expandable Sleeving

Packaging Details

  • UPC: 07498370659
  • GTIN Package: 00074983706594
  • Standard Package Volume Ft3: 0.5631
  • Standard Package Weight Pounds: 5.0000
  • Std Package Height In: 7
  • Std Package Height MM: 177.8
  • Std Package Length In: 10.5
  • Std Package Length MM: 266.7
  • Std Package Width In: 10.45
  • Std Package Width MM: 265.43
  • Std. Pkg. UOM: Roll
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983706599
  • Standard Carton Volume Ft3: 0.5631
  • Standard Carton Weight Pounds: 10.0000
  • Std Carton Height In: 8.1
  • Std Carton Height MM: 205.74
  • Std Carton Length In: 21.9
  • Std Carton Length MM: 266.7
  • Std Carton Width In: 11.35
  • Std Carton Width MM: 288.29
  • Std Ctn Qty: 2
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983706594
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1


UPC 07498370659

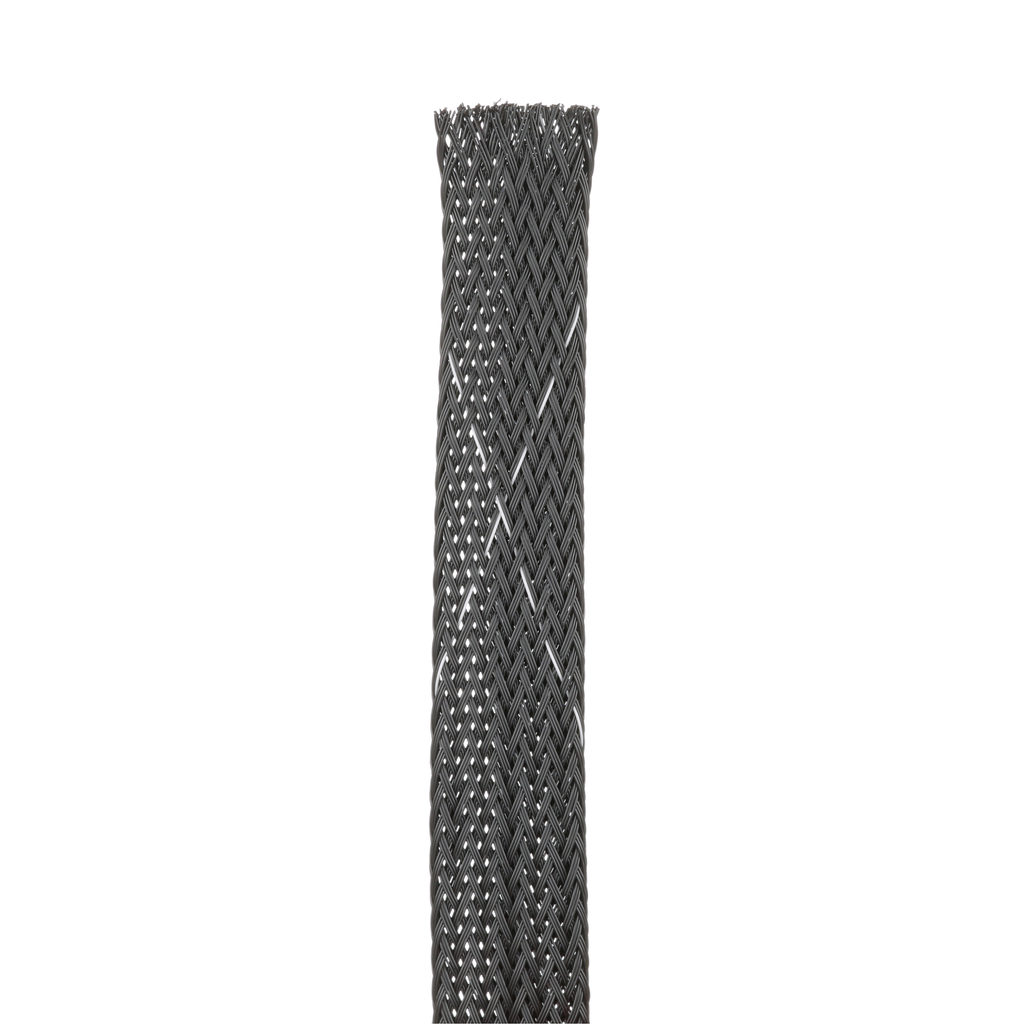

Item Long Description The SE50PFR-DR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible. The open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards.Temperature range: -94F 257F (-70C 125C). Flame-Retardent Polyethylene Terephthalate. Nominal Diameter: 0.5" (12.7 mm), 500' (152.4 m) long. Color Black with White thread. 1 per package.
GTiN 00074983706594
Length 500 ft
Color Black
Type Braided Expandable Sleeving
Diameter 0.25 - 0.75 IN
Material Polyethylene
Applications Lightweight durable protection
Country of Origin MX
Temperature Rating -94 to 257 F
Pkg Qty 1
Family Brand Name Panduit
Max Operating Temperature 257 degrees F
Overall Length 500 ft
Min Operating Temperature -94 degrees F
CA Prop65 Warning No
