PAN SE75P-DR8 Braided Sleeve, .75"X
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$774.25/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SE75P-DR8
North Coast Part # 605202

Specifications

  • Product Segment: IEI
  • UNSPSC: 39131602
  • Application: (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes
  • Material: Polyethylene Terephthalate
  • Flammability Rating: UL94-HB
  • Color: Gray
  • Resistance Properties: Abrasion-Resistant
  • Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint
  • Maximum Operating Temperature (°C): 125
  • Minimum Operating Temperature (°C): -70
  • Minimum Operating Temperature (°F): -94
  • Maximum Operating Temperature (°F): 257
  • Nominal Diameter (mm): 19
  • Nominal Diameter (In.): 0.75
  • Overall Length (m): 152.4
  • Overall Length (ft.): 500
  • Product Type: Braided Expandable Sleeving

Packaging Details

  • UPC: 07498321994
  • GTIN Package: 00074983219940
  • Standard Package Volume Ft3: 0.5627
  • Standard Package Weight Pounds: 9.0000
  • Std Package Height In: 4
  • Std Package Height MM: 101.6
  • Std Package Length In: 21.9
  • Std Package Length MM: 556.26
  • Std Package Width In: 11.1
  • Std Package Width MM: 281.94
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983219945
  • Standard Carton Volume Ft3: 0.5627
  • Standard Carton Weight Pounds: 18.0000
  • Std Carton Height In: 8
  • Std Carton Height MM: 203.2
  • Std Carton Length In: 21.9
  • Std Carton Length MM: 556.26
  • Std Carton Width In: 11.1
  • Std Carton Width MM: 281.94
  • Std Ctn Qty: 2
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983219940
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 96
  • Pallet Volume: 54.020000
  • Pallet Weight: 864.0000

Overview

UPC 07498321994

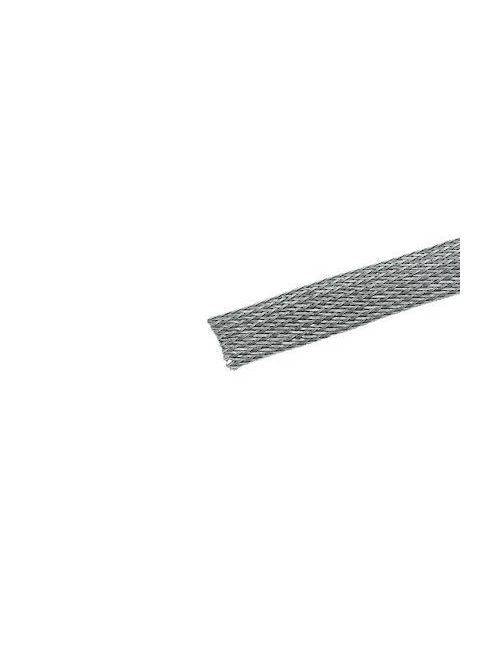

Item Long Description Braided Expandable Sleeving, 0.75" diameter (19.1mm), provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, gray, Polyethylene Terephthalate, 500 ft. per reel.
GTiN 00074983219940
Length 500 ft
Color Gray
Type Braided Expandable Sleeving
Diameter 0.50 - 1.25 IN
Material Polyethylene
Applications Lightweight durable protection
Country of Origin US
Temperature Rating -94 to 257 F
Pkg Qty 1
Family Brand Name Panduit
Max Operating Temperature 257 degrees F
Overall Length 500 ft
Min Operating Temperature -94 degrees F
UNSPSC 39131602
