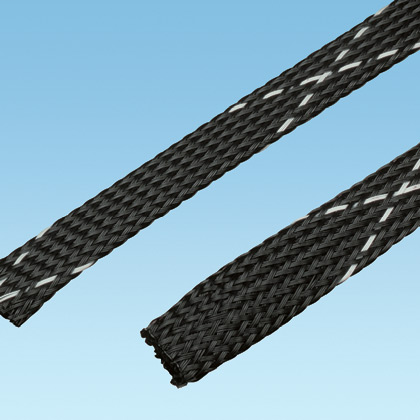

PAN SE75PFR-DR0 Braided Sleeve, FR,

Specifications

• Product Segment: IEI
• Application: Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
• Material: Polyethylene Terephthalate
• Flammability Rating: VW-1
• Color: Black
• Resistance Properties: Flame-Retardant
• Standards Met: CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
• Maximum Diameter (mm): 31.8
• Maximum Diameter (In.): 1.25
• Minimum Operating Temperature (°C): -70
• Maximum Operating Temperature (°C): 125
• Maximum Operating Temperature (°F): 257
• Minimum Operating Temperature (°F): -94
• Nominal Diameter (In.): 0.75
• Nominal Diameter (mm): 19.1
• Overall Length (ft.): 500
• Overall Length (m): 152.4
• Product Type: Braided Expandable Sleeving

Packaging Details

• UPC: 07498370661
• GTIN Package: 00074983706617
• Standard Package Volume Ft3: 0.5601
• Standard Package Weight Pounds: 6.2500
• Std Package Height In: 7.05
• Std Package Height MM: 179.07
• Std Package Length In: 10.55
• Std Package Length MM: 267.97
• Std Package Width In: 10.45
• Std Package Width MM: 265.43
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983706612
• Standard Carton Volume Ft3: 0.5601
• Standard Carton Weight Pounds: 12.5000
• Std Carton Height In: 7.95
• Std Carton Height MM: 201.93
• Std Carton Length In: 21.75
• Std Carton Length MM: 267.97
• Std Carton Width In: 11.25
• Std Carton Width MM: 285.75
• Std Ctn Qty: 2
• Min. Order UOM: Roll
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983706617
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1
