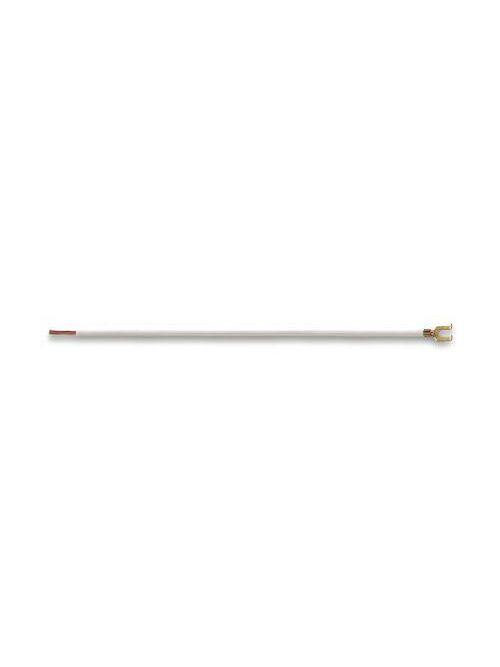

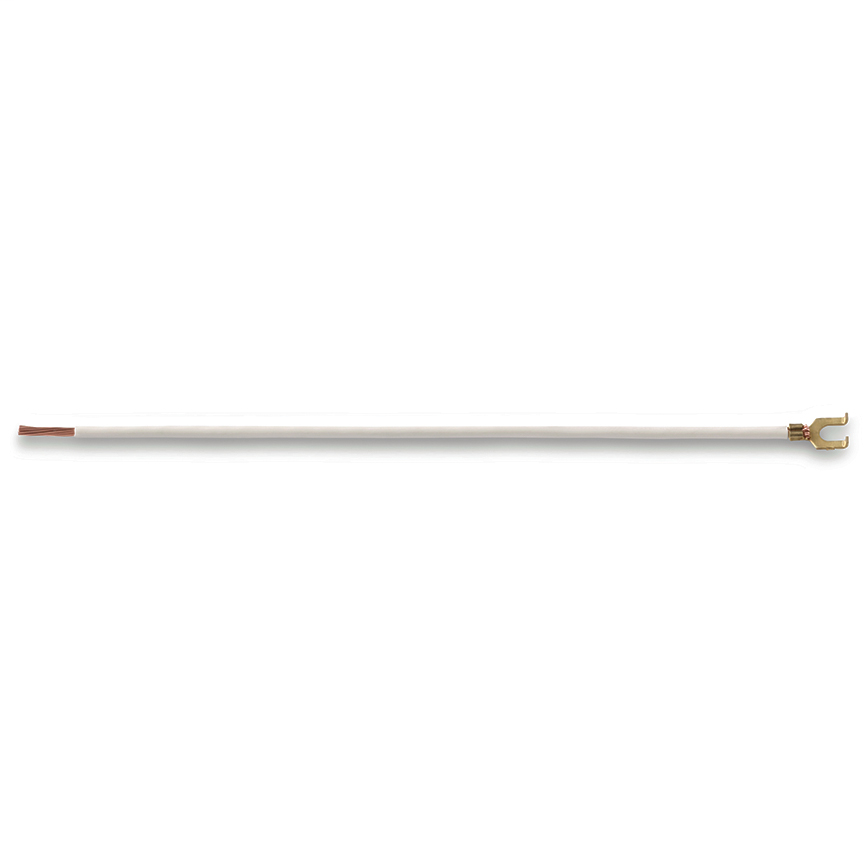

PAN SGPS12-8FT-L10 12 AWG Stranded
$76.91/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SGPS12-8FT-L10
North Coast Part # 1679239

Specifications

  • Product Segment: IEI
  • Product Category: POWER CONNECTORS
  • Overall Length (In.): 8
  • Overall Length (mm): 203.2
  • Color: White
  • Conductor Gauge (AWG): #12 AWG Stranded
  • Connector 1 Type: Flanged Spade Terminal
  • Connector 2 Type: Stripped
  • Standards Met: RoHS Complaint; UL Recognized, UL 486A-486B, E504387
  • Application: Metal Junction Boxes used by Electrical Contractors
  • Product Type: Power Pigtail
  • Wire Strip Length (In.): 0.63
  • Wire Strip Length (mm): 16
  • Insulation Type: THHN
  • Number Of Wires: 1
  • Maximum Voltage (V): 600
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105

Packaging Details

  • UPC: 61305658316
  • GTIN Package: 00613056583160
  • Standard Package Volume Ft3: 0.0174
  • Standard Package Weight Pounds: 0.8550
  • Std Package Height In: .05
  • Std Package Height MM: 1.27
  • Std Package Length In: 10
  • Std Package Length MM: 254
  • Std Package Width In: 5
  • Std Package Width MM: 127
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50613056583165
  • Standard Carton Volume Ft3: 0.0174
  • Standard Carton Weight Pounds: 17.1000
  • Std Carton Height In: 6
  • Std Carton Height MM: 152.4
  • Std Carton Length In: 10
  • Std Carton Length MM: 254
  • Std Carton Width In: 10
  • Std Carton Width MM: 254
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00613056583160
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 61305658316
GTiN 00613056583160
Color White
Type Power Pigtail
Conductor Size 12 AWG
Applications Metal Junction Boxes used by Electrical Contractors
Country of Origin US
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 1000
Max Operating Temperature 221 degrees F
Overall Length 8 in
Sub Brand StrongHold
