PAN SPF2-4-C Panduit SPF2-4-C Servi
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$3,118.19/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # SPF2-4-C
North Coast Part # 1340416

Specifications

  • Product Segment: IEI
  • Sub Brand: StructuredGround™
  • Material: Bronze
  • Maximum Copper Conductor Size (AWG SOL): 10
  • Minimum Copper Conductor Size (AWG STR): 4
  • Overall Length (mm): 39.6
  • Overall Length (In.): 1.56
  • Hex Size (mm): 19
  • Hex Size (In.): 0.75
  • Application: Utility/Ground Grid
  • Standards Met: cULus Listed - 467, DB Rated
  • Product Type: Grounding Connectors - Service Post, Female Thread, two- Conductors
  • Keywords: Complement component for earthing and lightning protection, cover, lightning protection

Packaging Details

  • UPC: 07498371696
  • GTIN Package: 00074983716968
  • Standard Package Volume Ft3: 0.1922
  • Standard Package Weight Pounds: 12.1000
  • Std Package Height In: 4.7
  • Std Package Height MM: 119.38
  • Std Package Length In: 11.1
  • Std Package Length MM: 281.94
  • Std Package Width In: 6.6
  • Std Package Width MM: 167.64
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • Standard Carton Volume Ft3: 0.1922
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 281.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: RoHS directive is not applicable
  • EAN: 00074983716968
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 24,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 2,904.0000

Overview

UPC 07498371696

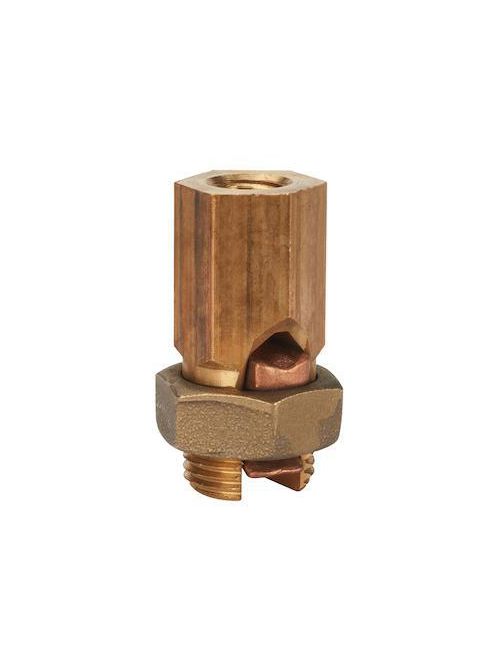

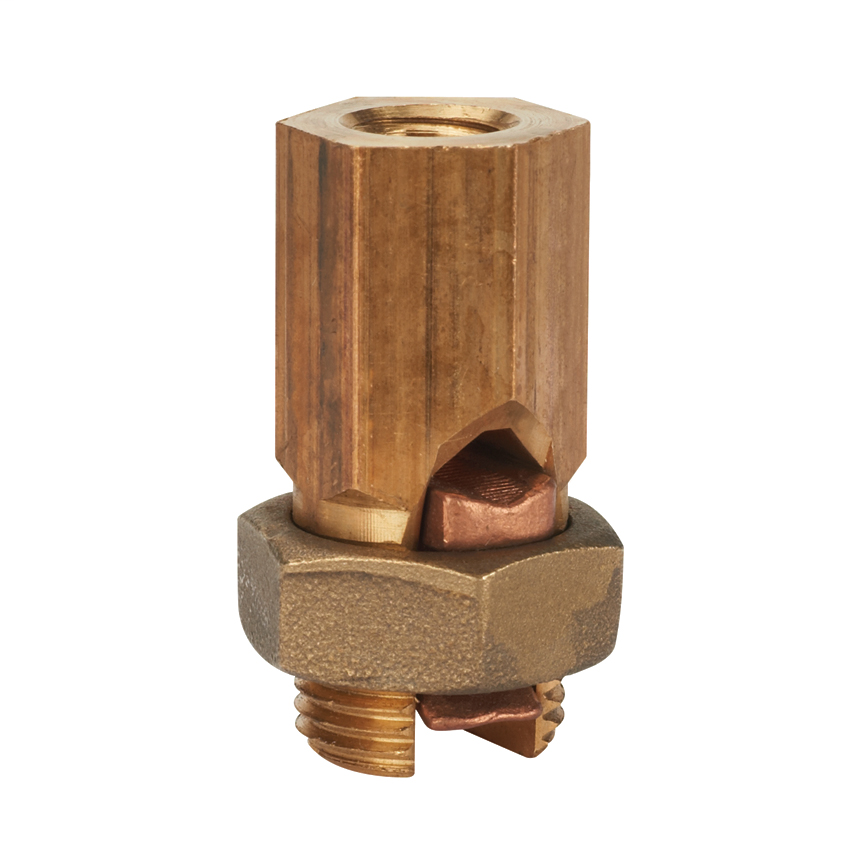

Item Long Description The SPF2-4-C Service Post Grounding Connector is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each connector providing a premium wire pull-out strength. UL Listed for grounding and bonding.
GTiN 00074983716968
Type Grounding Connectors - Service Post, Female Thread, Two- Conductors
Material High Copper Content Hard Drawn Rod
Applications Female Thread, For grounding two copper code conductors to steel structures, busbars or transformers or for tapping from busbar using external studs, screws, or bolts.
Country of Origin US
Pkg Qty 100
Family Brand Name Panduit
TC Connection Connecting Conductors of Various Sizes to External Threaded Studs
Overall Length 1.56 in
Sub Brand StructuredGround
