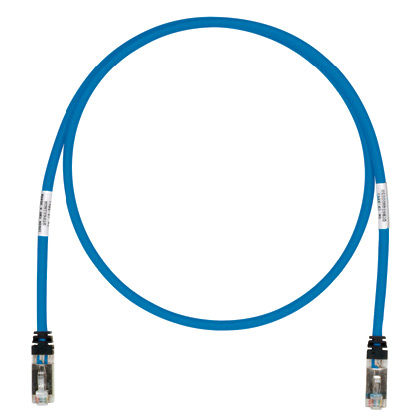

PAN STP6X8BU CU Patch Crd,Cat 6A,S/
$28.30/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # STP6X8BU
North Coast Part # 1164919

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 43223303
  • Product Type: Patch Cord
  • Application: 1) Stacking switched and switch-to-switch links 2) Aggregation of Gigabit Ethernet channels 3) Streaming video 4) Scientific modeling 5) Storage area networks 6) Real-time intensive financial transactions 7) Animation 8) Medical imaging
  • Conductor Gauge (kcmil): 0.2
  • Conductor Gauge (AWG): 26
  • Performance Level: Category 6A
  • Conductor Type: Stranded
  • Cable Construction: S/FTP
  • Patch Cord Type: Shielded
  • Plug Housing Material: Polycarbonate
  • Connector 1 Type: Modular Plug
  • Connector 2 Type: Modular Plug
  • Overall Length (ft.): 8
  • Sub Brand: PanNet
  • Nominal Cable Outside Diameter (In.): 0.24
  • Wiring Scheme: T568B
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Minimum Storage Temperature (°F): -40
  • Boot Color: Black
  • Color: Blue
  • Flammability Rating: Dual Rated (CM/LSZH)
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards ISO 11801 Class EA for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE, PoE+, PoE++
  • Plug Type: 8 Position

Packaging Details

  • UPC: 07498301183
  • GTIN Package: 00074983011834
  • Standard Package Volume Ft3: 0.0284
  • Standard Package Weight Pounds: 0.3042
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 11
  • Std Package Length MM: 279.4
  • Std Package Width In: 9
  • Std Package Width MM: 228.6
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983011839
  • Standard Carton Volume Ft3: 0.0284
  • Standard Carton Weight Pounds: 3.0420
  • Std Carton Height In: 4.3
  • Std Carton Height MM: 109.22
  • Std Carton Length In: 10.4
  • Std Carton Length MM: 279.4
  • Std Carton Width In: 10.4
  • Std Carton Width MM: 264.16
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CN,CR
  • RoHS Compliant: Compliant
  • EAN: 00074983011834
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498301183
GTiN 00074983011834
Length 8 ft
Color Blue
Type Category 6A
Outer Diameter 0.24 in
Conductor Size 26 AWG
Cable Type 26 AWG S/FTP
Country of Origin China,Costa Rica
Wire Size 26 AWG
Pkg Qty 1
Family Brand Name Panduit
Conductor Material Copper
Performance Level Category 6A
Carton Qty 10
Outside Diameter 6.1 mm
Max Operating Temperature 140 degrees F
Overall Length 8 ft
Min Operating Temperature 14 degrees F
Boot Color Black
Plug Type Modular Plug
Sub Brand PanNet
Connector Type Modular Plug
Cable Length 8 ft
UNSPSC 43223303
