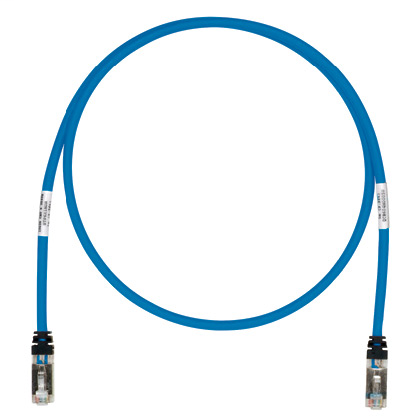

PAN STP6X9BU CU Patch Crd,Cat 6A,S/
$29.48/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # STP6X9BU
North Coast Part # 1164921

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 43223303
  • Application: (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
  • Product Type: Shielded Patch Cord
  • Conductor Gauge (AWG): 26
  • Conductor Gauge (kcmil): 0.3
  • Performance Level: Category 6A
  • Conductor Type: Stranded
  • Cable Construction: S/FTP
  • Patch Cord Type: Shielded
  • Plug Housing Material: Polycarbonate
  • Connector 1 Type: RJ45 8
  • Connector 2 Type: RJ45 8
  • Overall Length (ft.): 9
  • Sub Brand: PanNet
  • Nominal Cable Outside Diameter (In.): 0.24
  • Wiring Scheme: T568B
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Minimum Storage Temperature (°F): -40
  • Boot Color: Black
  • Color: Blue
  • Flammability Rating: Dual Rated (CM/LSZH)
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE
  • Plug Type: Meets IEC 60603-7

Packaging Details

  • UPC: 07498301184
  • GTIN Package: 00074983011841
  • Standard Package Volume Ft3: 0.0347
  • Standard Package Weight Pounds: 0.3455
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 11
  • Std Package Length MM: 279.4
  • Std Package Width In: 9
  • Std Package Width MM: 228.6
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983011846
  • Standard Carton Volume Ft3: 0.0347
  • Standard Carton Weight Pounds: 3.4550
  • Std Carton Height In: 4.2
  • Std Carton Height MM: 106.68
  • Std Carton Length In: 13.5
  • Std Carton Length MM: 279.4
  • Std Carton Width In: 10.1
  • Std Carton Width MM: 256.54
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR,CN
  • RoHS Compliant: Compliant
  • EAN: 00074983011841
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498301184
GTiN 00074983011841
Length 9 ft
Color Blue
Type Category 6A
Outer Diameter 0.24 in
Conductor Size 26 AWG
Connector Type Modular Plug
Cable Type 26 AWG S/FTP
Country of Origin China,Costa Rica
Wire Size 26 AWG
Pkg Qty 1
Family Brand Name Panduit
Conductor Material Copper
Performance Level Category 6A
Carton Qty 10
Outside Diameter 6.1 mm
Max Operating Temperature 140 degrees F
Overall Length 9 ft
Cable Length 9 ft
Min Operating Temperature 14 degrees F
Boot Color Black
Plug Type Modular Plug
Sub Brand PanNet
UNSPSC 43223303
