Panduit T25F-C0 .25 Inch 6.3 mm x 100 Foot Weather Resistant Polyethylene Spiral Wrap
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$96.37/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # T25F-C0
North Coast Part # 600840

Specifications

  • Product Segment: IEI
  • Product Type: Spiral Wrap
  • Application: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
  • Color: Black
  • Environment: Indoor and Outdoor
  • Flammability Rating: UL94-HB
  • Includes: Installation Tool
  • Material: Weather Resistant Polyethylene
  • Resistance Properties: Abrasion Resistance; Weather Resistant
  • Maximum Bundle Diameter (In.): 2
  • Maximum Bundle Diameter (mm): 50.8
  • Maximum Operating Temperature (°C): 50
  • Maximum Operating Temperature (°F): 122
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Bundle Diameter (In.): 0.18
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Outer Diameter (In.): 0.25
  • Outer Diameter (mm): 6.4
  • Overall Length (ft.): 100
  • Overall Length (m): 30.5
  • Standards Met: UL Recognized - E141152; UL94HB
  • Wall Thickness (In.): 0.04
  • Wall Thickness (mm): 1.02

Packaging Details

  • UPC: 07498370555
  • GTIN Package: 00074983705559
  • Standard Package Volume Ft3: 0.2695
  • Standard Package Weight Pounds: 1.8000
  • Std Package Height In: 4.4
  • Std Package Height MM: 111.76
  • Std Package Length In: 10.35
  • Std Package Length MM: 262.89
  • Std Package Width In: 10.3
  • Std Package Width MM: 261.62
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.2695
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 262.89
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983705559
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Categories

Overview

UPC 07498370555

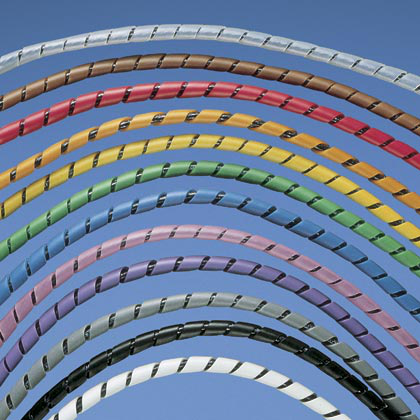

Item Long Description The T25F-C0 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Installation tool supplied. Rated for use up to 122F (50C). Weather Resistant Polyethylene. 0.25" (6.4 mm) diameter for 3/16" - 2" (4.8 mm 50.8 mm) bundle range. Color Black. 100' (30.5 m) long.
GTiN 00074983705559
Length 30.5 m
Color Black
Type Halogen Free
Material Weather Resistant Polyethylene
Applications Provides Cable and Hose Abrasion Protection
Country of Origin US
Temperature Rating -40 to 122 F
Pkg Qty 1
Family Brand Name Panduit
Outside Diameter 6.4 mm
Max Operating Temperature 149 degrees F
Overall Length 100 ft
Min Operating Temperature -40 degrees F
Wall Thickness 1.02 mm
Bundle Diameter 4.8 - 50.8 mm
