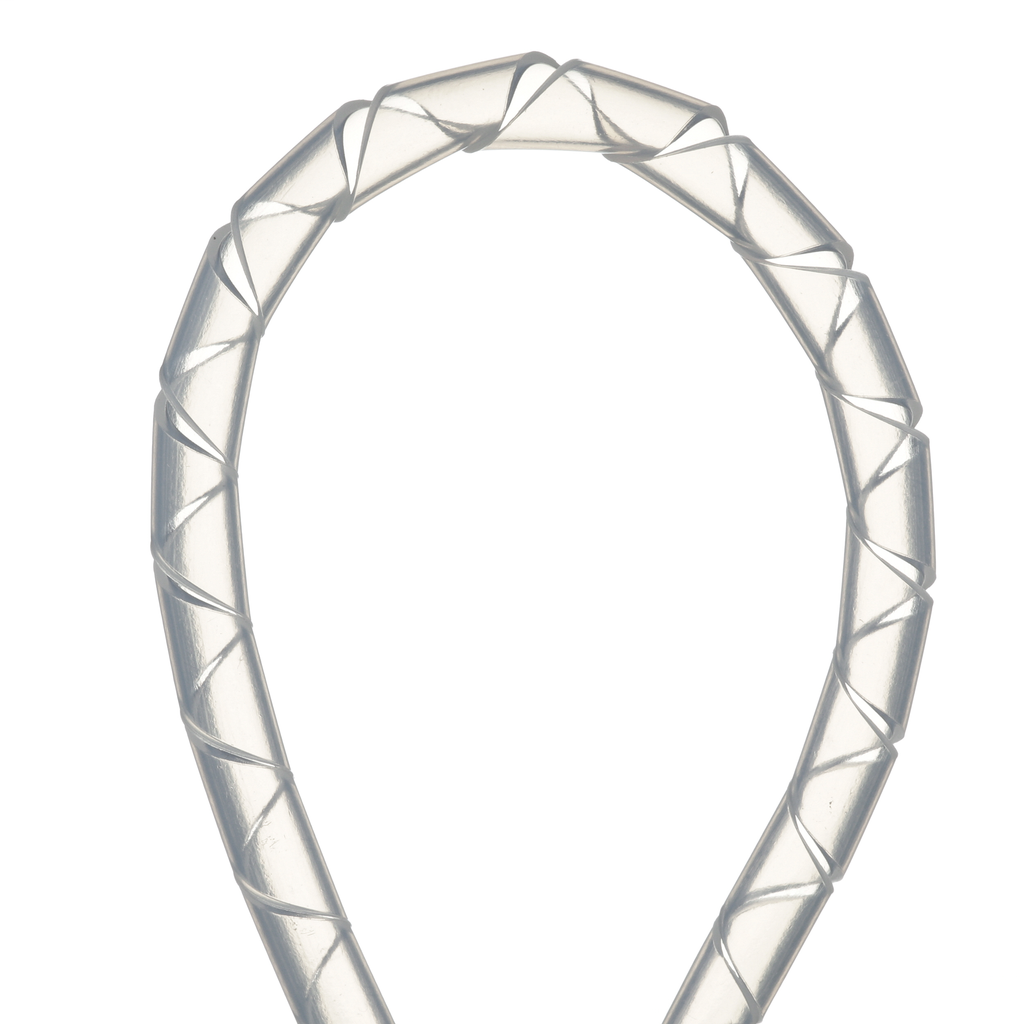

PAN T25T-L Panduit T25T-L TFE Spira
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$530.51/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # T25T-L
North Coast Part # 827129

Specifications

  • Product Segment: IEI
  • Product Type: Spiral Wrap
  • Application: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
  • Color: Natural
  • Environment: Indoor and Outdoor
  • Flammability Rating: UL94V-0
  • Includes: Installation Tool
  • Material: TFE
  • Resistance Properties: Abrasion Resistance; Flame Resistant, Chemical Resistant, UV Resistant
  • Maximum Bundle Diameter (In.): 2
  • Maximum Bundle Diameter (mm): 50.8
  • Maximum Operating Temperature (°F): 356
  • Maximum Operating Temperature (°C): 180
  • Minimum Bundle Diameter (In.): 0.18
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Operating Temperature (°F): -454
  • Minimum Operating Temperature (°C): -270
  • Outer Diameter (In.): 0.25
  • Outer Diameter (mm): 6.4
  • Overall Length (m): 15.2
  • Overall Length (ft.): 50
  • Standards Met: UL Recognized - E141152; UL94V-0
  • Wall Thickness (mm): 0.76
  • Wall Thickness (In.): 0.03

Packaging Details

  • UPC: 07498370568
  • GTIN Package: 00074983705689
  • Standard Package Volume Ft3: 0.1172
  • Standard Package Weight Pounds: 1.2500
  • Std Package Height In: 3
  • Std Package Height MM: 76.2
  • Std Package Length In: 8.65
  • Std Package Length MM: 219.71
  • Std Package Width In: 8.55
  • Std Package Width MM: 217.17
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.1172
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 219.71
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983705689
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 350
  • Pallet Volume: 0.000000
  • Pallet Weight: 437.5000

Overview

UPC 07498370568
Item Long Description Spiral Wrap, 0.25" (6.3mm) x 50', TFE, Natural
GTiN 00074983705689
Length 50 ft
Color Natural
Type Spiral Wrap
Material TFE
Applications Provides cable and hose abrasion protection
Country of Origin US
Temperature Rating -454 to 356 F
Pkg Qty 1
Family Brand Name Panduit
Outside Diameter 0.25 in
Max Operating Temperature 356 degrees F
Overall Length 50 ft
Min Operating Temperature -454 degrees F
Wall Thickness 0.030 IN
CA Prop65 Warning No
