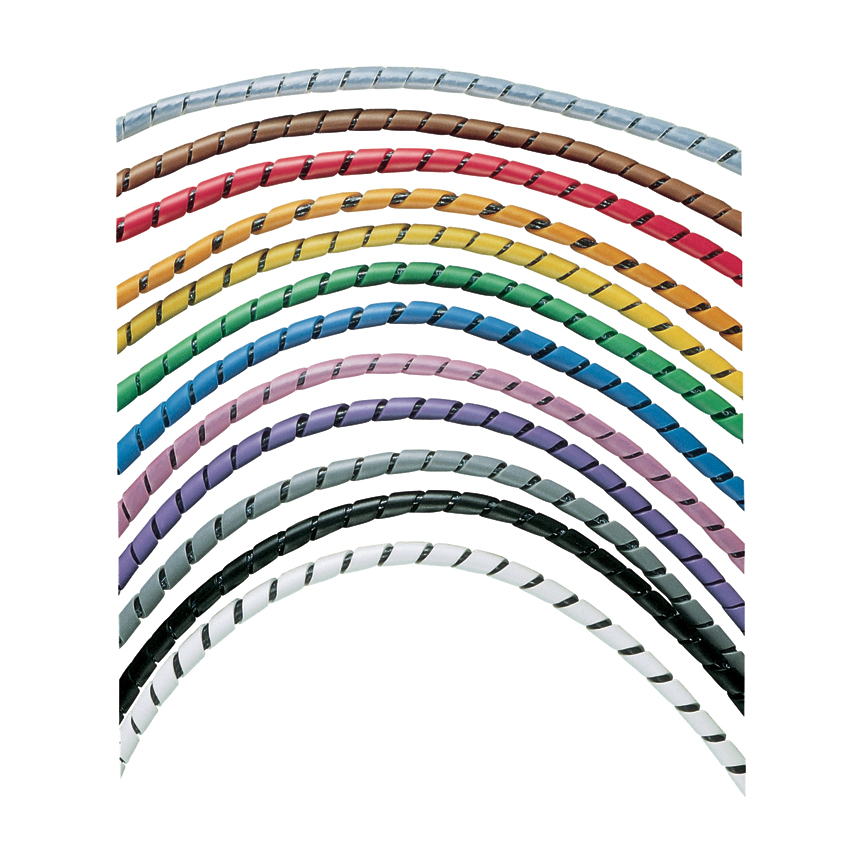

PAN T50F-X Spiral Wrap, .50" x 10',

Specifications

• Product Segment: IEI
• UNSPSC: 39131604
• Application: (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
• Product Type: Spiral Wrap
• Color: Natural
• Flammability Rating: HB
• Includes: Installation Tool
• Material: Polyethylene
• Resistance Properties: Abrasion Protection
• Maximum Bundle Diameter (mm): 101.6
• Maximum Bundle Diameter (In.): 4
• Maximum Operating Temperature (°F): 122
• Maximum Operating Temperature (°C): 50
• Minimum Bundle Diameter (mm): 9.5
• Minimum Bundle Diameter (In.): 0.37
• Minimum Operating Temperature (°F): -40
• Minimum Operating Temperature (°C): -40
• Outer Diameter (mm): 12.7
• Outer Diameter (In.): 0.5
• Overall Length (ft.): 10
• Overall Length (m): 3
• Standards Met: UL Recognized E141152
• Wall Thickness (In.): 0.06
• Wall Thickness (mm): 1.5

Packaging Details

• UPC: 07498322486
• GTIN Package: 00074983224869
• Standard Package Volume Ft3: 0.0744
• Standard Package Weight Pounds: 0.3750
• Std Package Height In: 2.1
• Std Package Height MM: 53.34
• Std Package Length In: 10.55
• Std Package Length MM: 267.97
• Std Package Width In: 8
• Std Package Width MM: 203.2
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983224864
• Standard Carton Volume Ft3: 0.0744
• Standard Carton Weight Pounds: 3.7500
• Std Carton Height In: 9.75
• Std Carton Height MM: 247.65
• Std Carton Length In: 14.55
• Std Carton Length MM: 267.97
• Std Carton Width In: 9.25
• Std Carton Width MM: 234.95
• Std Ctn Qty: 10
• Min. Order UOM: Roll
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983224869
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
• Pallet Quantity: 600
• Pallet Volume: 44.631794
• Pallet Weight: 225.0000
