PAN T50N-C Spiral Wrap, .50"" x 100'
$509.89/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # T50N-C
North Coast Part # 157134

Specifications

  • Product Segment: IEI
  • UNSPSC: 39131604
  • Product Type: Spiral Wrap

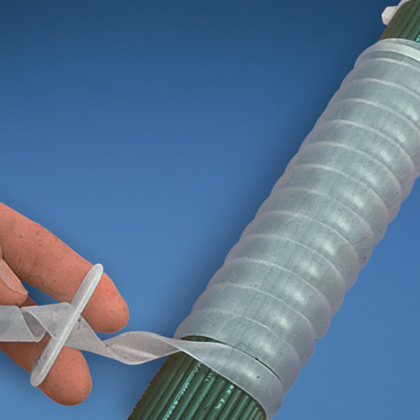

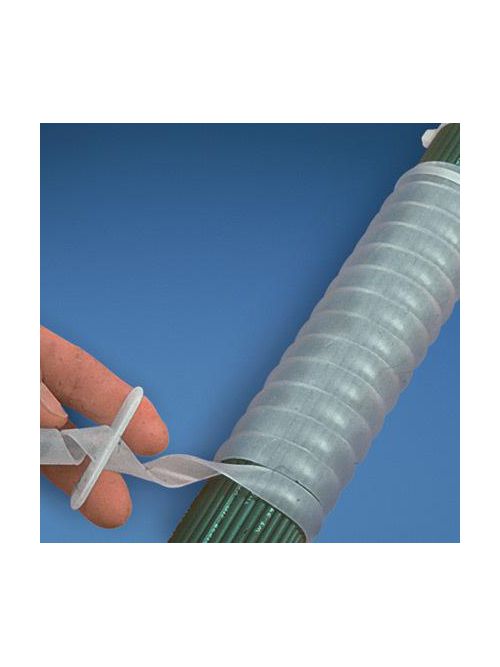

  • Application: (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
  • Color: Natural
  • Flammability Rating: HB
  • Includes: Installation Tool
  • Material: Nylon 6.6
  • Resistance Properties: Abrasion Protection
  • Maximum Bundle Diameter (mm): 101.6
  • Maximum Bundle Diameter (In.): 4
  • Maximum Operating Temperature (°C): 65
  • Maximum Operating Temperature (°F): 149
  • Minimum Bundle Diameter (mm): 9.5
  • Minimum Bundle Diameter (In.): 0.37
  • Minimum Operating Temperature (°F): -40
  • Minimum Operating Temperature (°C): -40
  • Outer Diameter (In.): 0.5
  • Outer Diameter (mm): 12.7
  • Overall Length (m): 30.5
  • Overall Length (ft.): 100
  • Product Category: ABRASION PROTECTION
  • Standards Met: UL Recognized E141152
  • Wall Thickness (mm): 0.8
  • Wall Thickness (In.): 0.03

Packaging Details

  • UPC: 07498370612
  • GTIN Package: 00074983706129
  • Standard Package Volume Ft3: 0.8359
  • Standard Package Weight Pounds: 3.8500
  • Std Package Height In: 6.8
  • Std Package Height MM: 172.72
  • Std Package Length In: 14.5
  • Std Package Length MM: 368.3
  • Std Package Width In: 14.45
  • Std Package Width MM: 367.03
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.8359
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 368.3
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983706129
  • NLD HS Code: 3926909790000000000000
  • USA HS Code: 3926909990000000000000
  • USA HS Code 10digit: 3926909990
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498370612
GTiN 00074983706129
Length 30.5 m
Color Natural
Type Spiral Wrap
Material Nylon
Applications Provides cable and hose abrasion protection
Country of Origin US
Temperature Rating -40 to 149 F
Pkg Qty 1
Family Brand Name Panduit
Carton Qty 0
Outside Diameter 12.7 mm
Max Operating Temperature 149 degrees F
Overall Length 100 ft
Min Operating Temperature -40 degrees F
Wall Thickness 0.81 mm
CA Prop65 Warning No
