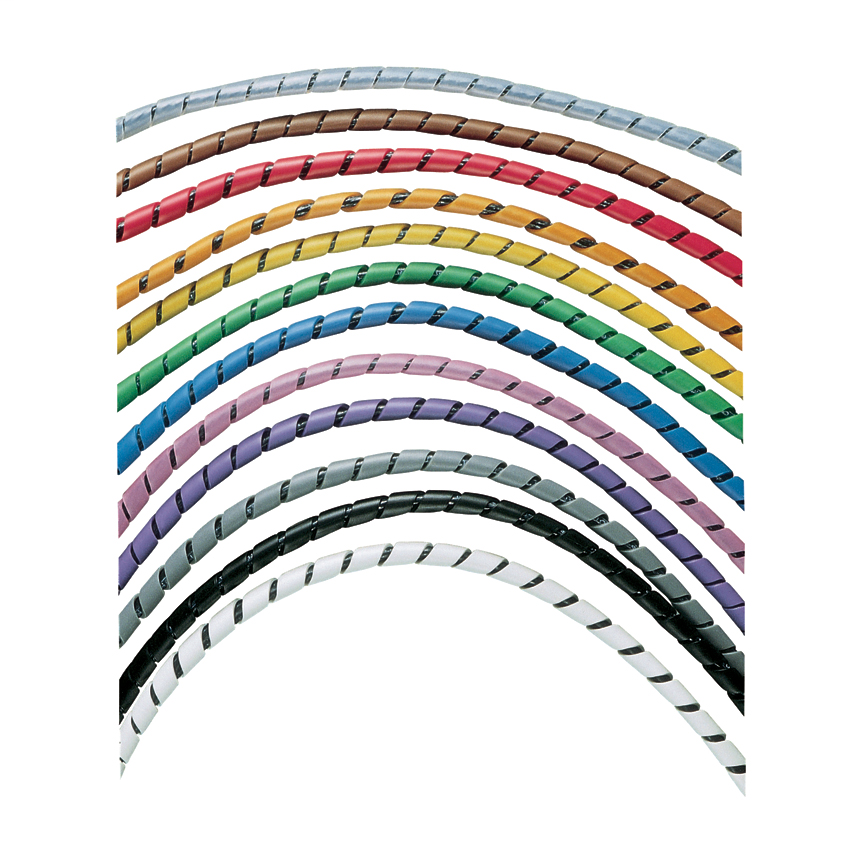

PAN T75F-T Spiral Wrap, .75" x 200'

Specifications

• UNSPSC: 39131604
• Product Segment: IEI
• Application: (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
• Product Type: Spiral Wrap
• Color: Natural
• Flammability Rating: HB
• Includes: Installation Tool
• Material: Polyethylene
• Resistance Properties: Abrasion Protection
• Maximum Bundle Diameter (mm): 1.5
• Maximum Bundle Diameter (In.): 5
• Maximum Operating Temperature (°F): 122
• Maximum Operating Temperature (°C): 50
• Minimum Bundle Diameter (In.): 0.62
• Minimum Bundle Diameter (mm): 15.9
• Minimum Operating Temperature (°F): -40
• Minimum Operating Temperature (°C): -40
• Outer Diameter (mm): 19
• Outer Diameter (In.): 0.75
• Overall Length (ft.): 200
• Overall Length (m): 61
• Standards Met: UL Recognized E141152
• Wall Thickness (In.): 0.06
• Wall Thickness (mm): 1.6

Packaging Details

• UPC: 07498370585
• GTIN Package: 00074983705856
• Standard Package Volume Ft3: 2.4267
• Standard Package Weight Pounds: 14.5500
• Std Package Height In: 9.4
• Std Package Height MM: 238.76
• Std Package Length In: 21.4
• Std Package Length MM: 543.56
• Std Package Width In: 21.4
• Std Package Width MM: 543.56
• Std. Pkg. UOM: Roll
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• Standard Carton Volume Ft3: 2.4267
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 543.56
• Std Ctn Qty: 0
• Min. Order UOM: Roll
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983705856
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
