PAN T75N-C Spiral Wrap, .75" x 100'
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$911.11/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # T75N-C
North Coast Part # 930789

Specifications

  • Product Segment: IEI
  • UNSPSC: 39131604
  • Product Type: Spiral Wrap
  • Application: (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
  • Color: Natural
  • Flammability Rating: HB
  • Includes: Installation Tool
  • Material: Nylon 6.6
  • Resistance Properties: Abrasion Protection
  • Maximum Bundle Diameter (In.): 5
  • Maximum Bundle Diameter (mm): 1.5
  • Maximum Operating Temperature (°C): 65
  • Maximum Operating Temperature (°F): 149
  • Minimum Bundle Diameter (In.): 0.62
  • Minimum Bundle Diameter (mm): 15.9
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Outer Diameter (mm): 19
  • Outer Diameter (In.): 0.75
  • Overall Length (ft.): 100
  • Overall Length (m): 30.5
  • Standards Met: UL Recognized E141152
  • Wall Thickness (mm): 1
  • Wall Thickness (In.): 0.04

Packaging Details

  • UPC: 07498370621
  • GTIN Package: 00074983706211
  • Standard Package Volume Ft3: 2.3816
  • Standard Package Weight Pounds: 6.2000
  • Std Package Height In: 9.4
  • Std Package Height MM: 238.76
  • Std Package Length In: 21.4
  • Std Package Length MM: 543.56
  • Std Package Width In: 21.4
  • Std Package Width MM: 543.56
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 2.3816
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 543.56
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983706211
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 20
  • Pallet Volume: 0.000000
  • Pallet Weight: 124.0000

Overview

UPC 07498370621

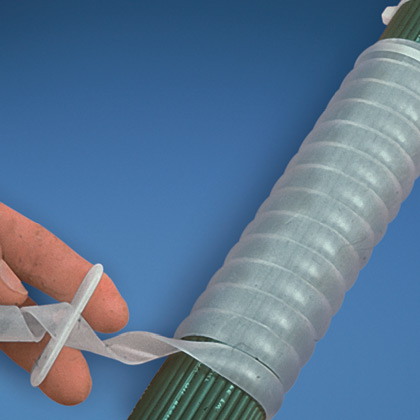

Item Long Description Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .75" (19.1mm) x 100', nylon 6.6, natural.
GTiN 00074983706211
Length 100 ft
Color Natural
Type Spiral Wrap
Material Nylon
Applications Provides cable and hose abrasion protection
Country of Origin US
Temperature Rating -40 to 149 F
Pkg Qty 1
Family Brand Name Panduit
Outside Diameter 0.75 in
Max Operating Temperature 149 degrees F
Overall Length 100 ft
Min Operating Temperature -40 degrees F
Wall Thickness 0.040 IN
UNSPSC 39131604
