Panduit TM2S8-M .43 Inch (10.9 mm) #8 Screw Cable Tie Mount
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$202.58/m (1000 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # TM2S8-M
North Coast Part # 667952

Specifications

  • Product Segment: IEI
  • Application: Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
  • Product Type: Cable Tie Mount
  • Color: Natural
  • Environment: Indoor
  • Material: Nylon 6.6
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Mount Method: Screw
  • Mounting Hole Thread Size: #8
  • Overall Height (In.): 0.275
  • Overall Height (mm): 7
  • Overall Length (In.): 0.63
  • Overall Length (mm): 16
  • Overall Width (mm): 10.9
  • Overall Width (In.): 0.43
  • Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant

Packaging Details

  • UPC: 07498358221
  • GTIN Package: 00074983582211
  • Standard Package Volume Ft3: 0.1274
  • Standard Package Weight Pounds: 1.4000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 10.1
  • Std Package Length MM: 256.54
  • Std Package Width In: 9.9
  • Std Package Width MM: 251.46
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983582216
  • Standard Carton Volume Ft3: 0.1274
  • Standard Carton Weight Pounds: 7.0000
  • Std Carton Height In: 8.85
  • Std Carton Height MM: 224.79
  • Std Carton Length In: 11.1
  • Std Carton Length MM: 256.54
  • Std Carton Width In: 9.1
  • Std Carton Width MM: 231.14
  • Std Ctn Qty: 5000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983582211
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 400,000
  • Pallet Volume: 50.956914
  • Pallet Weight: 560.0000

Overview

UPC 07498358221

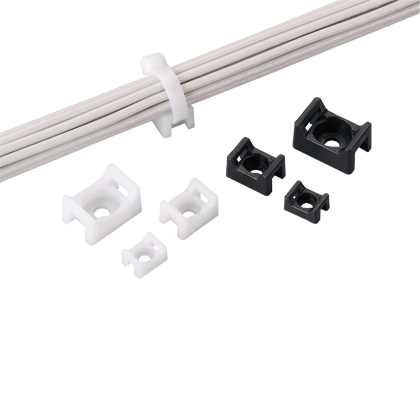

Item Long Description Panduit TM2S8-M Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 1000.
GTiN 00074983582211
Width 0.43 in
Color Natural
Type Cable Tie Mount
Material Nylon
Height 7 mm
Country of Origin US
Screw Size #8 (M4)
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 0.63 in
Min Operating Temperature -76 degrees F
Sub Brand Cable Tie Mount
CA Prop65 Warning No
Mounting Type Screw
