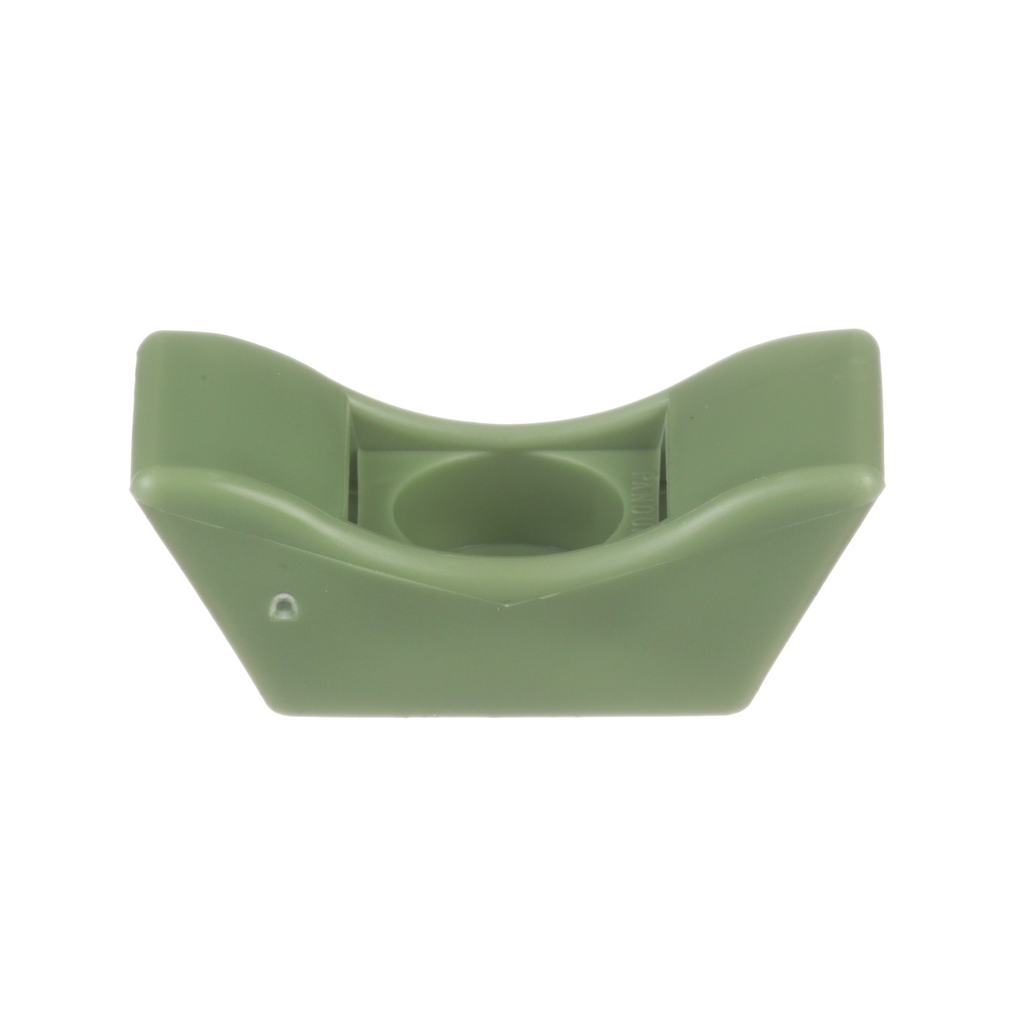

PAN TMEH-S10-C109 CableTieMnt,EH,#1

Specifications

• Product Segment: IEI
• UNSPSC: 39121717
• Application: Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment
• Product Type: Cable Tie Mount
• Color: Green
• Flammability Rating: UL94-HB
• Environment: Indoor
• Material: Polypropylene
• Maximum Operating Temperature (°C): 110
• Maximum Operating Temperature (°F): 230
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Mount Method: Screw
• Mounting Hole Thread Size: #10
• Overall Length (In.): 1.65
• Overall Length (mm): 41.9
• Overall Width (In.): 0.72
• Overall Width (mm): 18.3
• Resistance Properties: Heat and Wear Resistant
• Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
• Sub Brand: NA

Packaging Details

• UPC: 07498354064
• GTIN Package: 00074983540648
• Standard Package Volume Ft3: 0.0839
• Standard Package Weight Pounds: 1.1200
• Std Package Height In: 3.05
• Std Package Height MM: 77.47
• Std Package Length In: 9.55
• Std Package Length MM: 242.57
• Std Package Width In: 7.1
• Std Package Width MM: 180.34
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983540643
• Standard Carton Volume Ft3: 0.0839
• Standard Carton Weight Pounds: 5.6000
• Std Carton Height In: 7.3
• Std Carton Height MM: 185.42
• Std Carton Length In: 11.05
• Std Carton Length MM: 242.57
• Std Carton Width In: 9.15
• Std Carton Width MM: 232.41
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983540648
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
