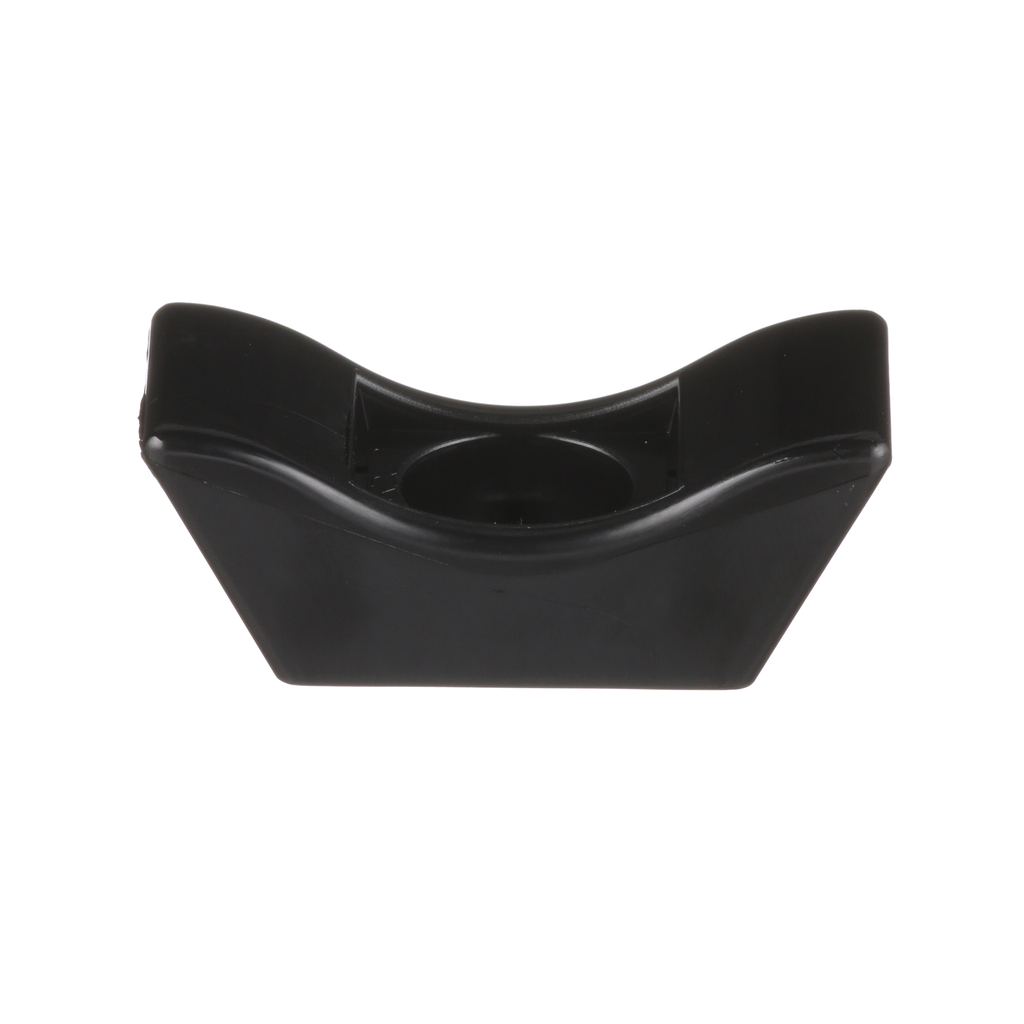

PAN TMEH-S25-C0 Panduit TMEH-S25-C0
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,019.62/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # TMEH-S25-C0
North Coast Part # 933462

Specifications

  • Product Segment: IEI

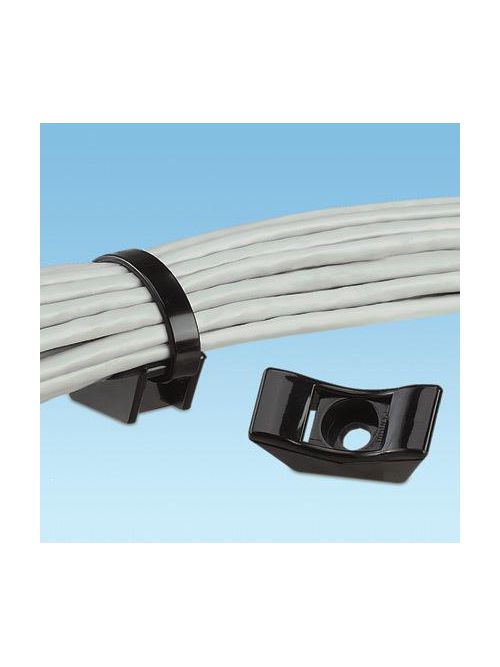

  • Application: Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment
  • Product Type: Cable Tie Mount
  • Color: Black
  • Environment: Outdoor
  • Material: Weather Resistant Nylon 6.6
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Mount Method: Screw
  • Mounting Hole Thread Size: #10
  • Overall Height (mm): 15.5
  • Overall Height (In.): 0.61
  • Overall Length (mm): 41.9
  • Overall Length (In.): 1.65
  • Overall Width (In.): 0.72
  • Overall Width (mm): 18.3
  • Resistance Properties: UV Resistant
  • Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant

Packaging Details

  • UPC: 07498358076
  • GTIN Package: 00074983580767
  • Standard Package Volume Ft3: 0.0668
  • Standard Package Weight Pounds: 1.1100
  • Std Package Height In: 2.15
  • Std Package Height MM: 54.61
  • Std Package Length In: 9.7
  • Std Package Length MM: 246.38
  • Std Package Width In: 9.65
  • Std Package Width MM: 245.11
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983580762
  • Standard Carton Volume Ft3: 0.0668
  • Standard Carton Weight Pounds: 5.5500
  • Std Carton Height In: 7.05
  • Std Carton Height MM: 179.07
  • Std Carton Length In: 10.9
  • Std Carton Length MM: 246.38
  • Std Carton Width In: 9.1
  • Std Carton Width MM: 231.14
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983580767
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Categories

Overview

UPC 07498358076
GTiN 00074983580767
Width 0.72 in
Color Black
Type Cable Tie Mount
Material Nylon
Height 15.5 mm
Country of Origin US
Screw Size 1/4 (M6)
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
Max Operating Temperature 185 degrees F
Overall Length 1.65 in
Min Operating Temperature -76 degrees F
Sub Brand Cable Tie Mount
CA Prop65 Warning No
Mounting Type Screw
