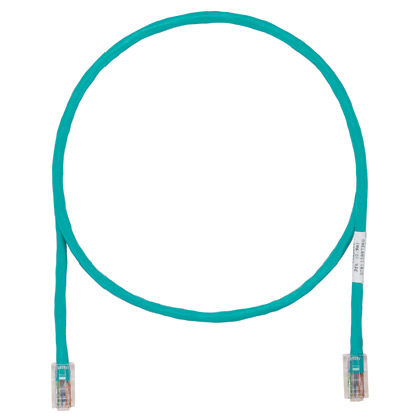

PAN UTPCH14GRY Cu Patch Cord,Cat5e,

Specifications

• UNSPSC: 43223303
• Product Segment: EDI-ENT
• Note: UTPCH14GRY replaces UTPCH14GR
• Application: (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
• Product Type: Patch Cord
• Conductor Gauge (AWG): 24
• Conductor Gauge (kcmil): 0.4
• Performance Level: Category 5e
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Connector 1 Type: Modular Plug
• Connector 2 Type: Modular Plug
• Sub Brand: PanNet
• Overall Length (ft.): 14
• Nominal Cable Outside Diameter (In.): 0.21
• Wiring Scheme: T568A
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°F): -40
• Boot Color: Clear
• Color: Green
• Flammability Rating: CM
• Standards Met: Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards for all frequencies from 1 to 100 MHz; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7; UL 1863; Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications; RoHS Complaint
• IEC Variant: 60603-7
• PoE Compatibility: PoE
• Plug Type: 8 Position

Packaging Details

• UPC: 07498306263
• GTIN Package: 00074983062638
• Standard Package Volume Ft3: 0.0347
• Standard Package Weight Pounds: 0.4150
• Std Package Height In: 1.5
• Std Package Height MM: 38.1
• Std Package Length In: 11
• Std Package Length MM: 279.4
• Std Package Width In: 9
• Std Package Width MM: 228.6
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983062633
• Standard Carton Volume Ft3: 0.0347
• Standard Carton Weight Pounds: 4.1500
• Std Carton Height In: 3.9
• Std Carton Height MM: 99.06
• Std Carton Length In: 13.4
• Std Carton Length MM: 279.4
• Std Carton Width In: 10.2
• Std Carton Width MM: 259.08
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983062638
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
