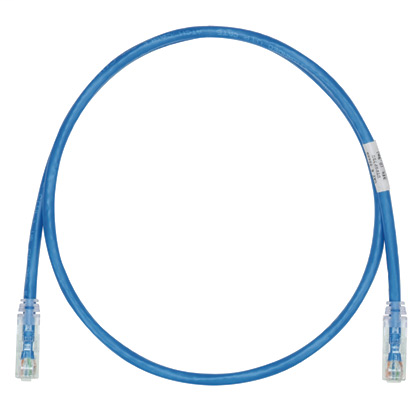

PAN UTPSP1BUY Cat 6 24 AWG UTP Copp

Specifications

• Product Segment: EDI-ENT
• Note: UTPSP1BUY replaces UTPSP1BU
• Product Type: Patch Cord
• Application: (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/baseband analog video(5) Voice over Internet Protocol (VoIP)
• Conductor Gauge (kcmil): 0.4
• Conductor Gauge (AWG): 24
• Performance Level: Category 6
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Jacket Material: Polyvinyl Chloride
• Connector 1 Type: RJ45 8
• Connector 2 Type: RJ45 8
• Overall Length (ft.): 1
• Sub Brand: Pan-Net®
• Nominal Cable Outside Diameter (In.): 0.24
• Wiring Scheme: T568B
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°F): -40
• Boot Color: Clear
• Color: Blue
• Flammability Rating: CM
• Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
• IEC Variant: 60603-7
• PoE Compatibility: PoE/PoE+/PoE++
• Plug Type: Meets IEC 60603-7

Packaging Details

• UPC: 07498316988
• GTIN Package: 00074983169887
• Standard Package Volume Ft3: 0.0155
• Standard Package Weight Pounds: 0.0710
• Std Package Height In: .65
• Std Package Height MM: 16.51
• Std Package Length In: 6.2
• Std Package Length MM: 157.48
• Std Package Width In: 4.9
• Std Package Width MM: 124.46
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983169882
• Standard Carton Volume Ft3: 0.0155
• Standard Carton Weight Pounds: 0.7103
• Std Carton Height In: 3.75
• Std Carton Height MM: 95.25
• Std Carton Length In: 9.35
• Std Carton Length MM: 157.48
• Std Carton Width In: 7.3
• Std Carton Width MM: 185.42
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR,CN
• RoHS Compliant: Compliant
• EAN: 00074983169887
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 10
• Pallet Quantity: 3,640
• Pallet Volume: 56.432639
• Pallet Weight: 258.5492
