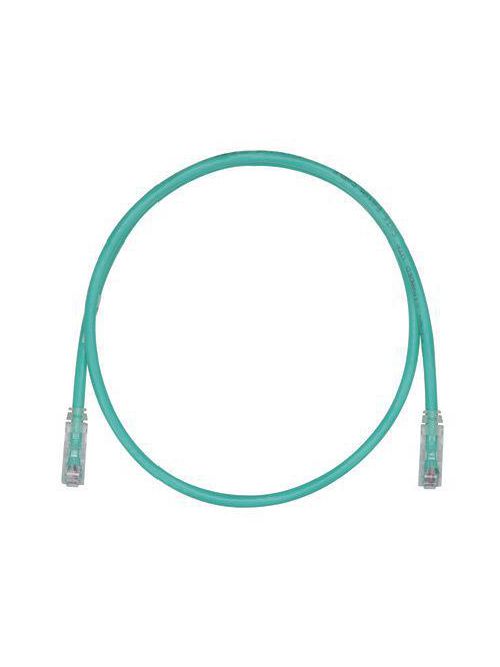

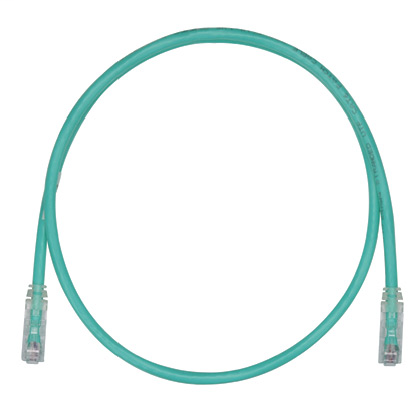

PAN UTPSP1GRY Cu Patch Cord,Cat 6,G
$12.69/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # UTPSP1GRY
North Coast Part # 679605

Specifications

  • Product Segment: EDI-ENT
  • UNSPSC: 43223303
  • Application: (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/baseband analog video(5) Voice over Internet Protocol (VoIP)
  • Product Type: Patch Cord
  • Conductor Gauge (AWG): 24
  • Conductor Gauge (kcmil): 0.4
  • Performance Level: Category 5e
  • Conductor Type: Stranded
  • Cable Construction: U/UTP
  • Patch Cord Type: Unshielded
  • Plug Housing Material: Polycarbonate
  • Connector 1 Type: RJ45 8
  • Connector 2 Type: RJ45 8
  • Overall Length (ft.): 1
  • Nominal Cable Outside Diameter (In.): 0.24
  • Wiring Scheme: T568B
  • Maximum Operating Temperature (°F): 140
  • Minimum Operating Temperature (°F): 14
  • Maximum Storage Temperature (°F): 158
  • Minimum Storage Temperature (°F): -40
  • Boot Color: Clear
  • Color: Green
  • Sub Brand: PanNet
  • Flammability Rating: CM
  • Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
  • IEC Variant: 60603-7
  • PoE Compatibility: PoE
  • Plug Type: Meets IEC 60603-7

Packaging Details

  • UPC: 07498316989
  • GTIN Package: 00074983169894
  • Standard Package Volume Ft3: 0.0155
  • Standard Package Weight Pounds: 0.0710
  • Std Package Height In: .65
  • Std Package Height MM: 16.51
  • Std Package Length In: 6.95
  • Std Package Length MM: 176.53
  • Std Package Width In: 5.05
  • Std Package Width MM: 128.27
  • Std. Pkg. UOM: Piece
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • GTIN Carton: 50074983169899
  • Standard Carton Volume Ft3: 0.0155
  • Standard Carton Weight Pounds: 0.7103
  • Std Carton Height In: 3.6
  • Std Carton Height MM: 91.44
  • Std Carton Length In: 9.05
  • Std Carton Length MM: 176.53
  • Std Carton Width In: 7.45
  • Std Carton Width MM: 189.23
  • Std Ctn Qty: 10
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CN,CR,RO
  • RoHS Compliant: Compliant
  • EAN: 00074983169894
  • NLD HS Code: 8544421000000000000000
  • USA HS Code: 8544422000000000000000
  • USA HS Code 10digit: 8544422000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498316989
GTiN 00074983169894
Length 1 ft
Color Green
Type Category 6
Outer Diameter 0.24 in
Conductor Size 24 AWG
Connector Type Modular Plug
Applications Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP
Cable Type 24 AWG U/UTP
Country of Origin CN,CR
Wire Size 24 AWG
Pkg Qty 1
Family Brand Name Panduit
Conductor Material Copper
Performance Level Category 5e
Carton Qty 10
Outside Diameter 5.8 mm
Max Operating Temperature 140 degrees F
Overall Length 1 ft
Cable Length 1 ft
Min Operating Temperature 14 degrees F
Boot Color Clear
Plug Type Modular Plug
Sub Brand PanNet
CA Prop65 Warning No
