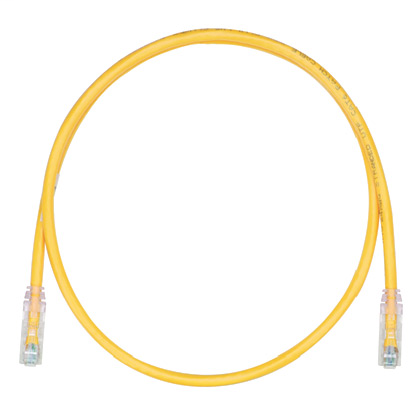

PAN UTPSP1YLY Cu,PC,Cat6,UTP,Cbl,YL

Specifications

• Product Segment: EDI-ENT
• UNSPSC: 43223303
• Product Type: Zone Cable Assembly
• Application: (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP)
• Conductor Gauge (kcmil): 0.4
• Conductor Gauge (AWG): 24
• Performance Level: Category 6
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Connector 1 Type: Modular Plug
• Connector 2 Type: Modular Plug
• Overall Length (ft.): 1
• Nominal Cable Outside Diameter (In.): 0.23
• Wiring Scheme: T568B
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°F): -40
• Boot Color: Clear
• Color: Yellow
• Sub Brand: PanNet
• Flammability Rating: CM
• Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
• IEC Variant: 60603-7
• PoE Compatibility: PoE
• Plug Type: 8 Position

Packaging Details

• UPC: 07498317006
• GTIN Package: 00074983170067
• Standard Package Volume Ft3: 0.0155
• Standard Package Weight Pounds: 0.0710
• Std Package Height In: .8
• Std Package Height MM: 20.32
• Std Package Length In: 6.55
• Std Package Length MM: 166.37
• Std Package Width In: 5.15
• Std Package Width MM: 130.81
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983170062
• Standard Carton Volume Ft3: 0.0155
• Standard Carton Weight Pounds: 0.7103
• Std Carton Height In: 3.7
• Std Carton Height MM: 93.98
• Std Carton Length In: 9.15
• Std Carton Length MM: 166.37
• Std Carton Width In: 7.35
• Std Carton Width MM: 186.69
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CN,CR,RO
• RoHS Compliant: Compliant
• EAN: 00074983170067
• NLD HS Code: 8544421000000000000000
• USA HS Code: 8544422000000000000000
• USA HS Code 10digit: 8544422000
• ECCN Commodity Code: EAR99
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
