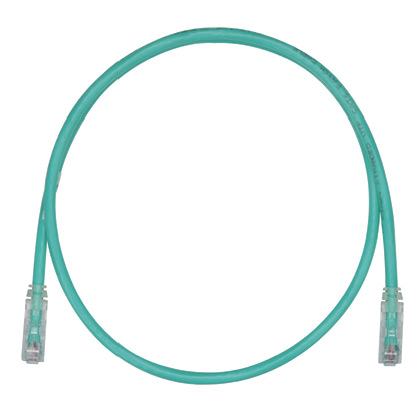

PAN UTPSP2GRY Cu,PC,Cat6,UTP,Cbl,GR

Specifications

• UNSPSC: 43223303
• Product Segment: EDI-ENT
• Application: (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digital video and broadband/baseband analog video(5) Voice over Internet Protocol (VoIP)
• Product Type: Patch Cord
• Conductor Gauge (kcmil): 0.4
• Conductor Gauge (AWG): 24
• Performance Level: Category 5e
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Connector 1 Type: RJ45 8
• Connector 2 Type: RJ45 8
• Overall Length (ft.): 2
• Nominal Cable Outside Diameter (In.): 0.24
• Wiring Scheme: T568B
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°F): -40
• Boot Color: Clear
• Color: Green
• Sub Brand: PanNet
• Flammability Rating: CM
• Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
• IEC Variant: 60603-7
• PoE Compatibility: PoE
• Plug Type: Meets IEC 60603-7

Packaging Details

• UPC: 07498317022
• GTIN Package: 00074983170227
• Standard Package Volume Ft3: 0.0155
• Standard Package Weight Pounds: 0.1025
• Std Package Height In: .75
• Std Package Height MM: 19.05
• Std Package Length In: 8.2
• Std Package Length MM: 208.28
• Std Package Width In: 6
• Std Package Width MM: 152.4
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983170222
• Standard Carton Volume Ft3: 0.0155
• Standard Carton Weight Pounds: 1.0253
• Std Carton Height In: 3.6
• Std Carton Height MM: 91.44
• Std Carton Length In: 9.35
• Std Carton Length MM: 208.28
• Std Carton Width In: 7.35
• Std Carton Width MM: 186.69
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CN,CR
• RoHS Compliant: Compliant
• EAN: 00074983170227
• NLD HS Code: 8544421000000000000000
• USA HS Code: 8544422000000000000000
• USA HS Code 10digit: 8544422000
• ECCN Commodity Code: EAR99
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
