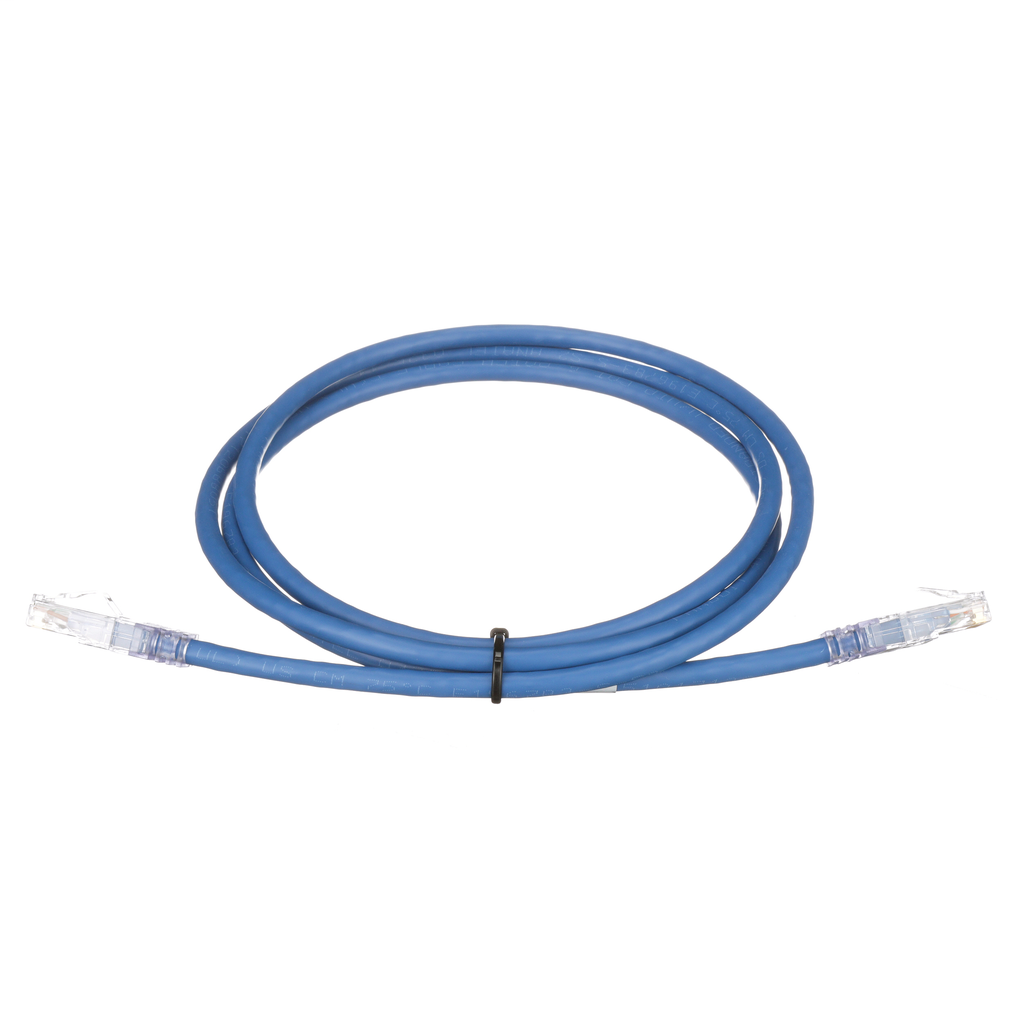

PAN UTPSP5BUY Cat 6 24 AWG UTP Copp

Specifications

• Product Segment: EDI-ENT
• Product Type: Patch Cord
• Note: UTPSP5BUY replaces UTPSP5BU
• Application: 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digital video and broadband/baseband analog video 5) Voice over Internet Protocol (VoIP)
• Conductor Gauge (kcmil): 0.4
• Conductor Gauge (AWG): 24
• Performance Level: Category 6
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Jacket Material: Polyvinyl Chloride
• Connector 1 Type: Modular Plug
• Connector 2 Type: Modular Plug
• Sub Brand: PanNet
• Overall Length (ft.): 5
• Nominal Cable Outside Diameter (In.): 0.23
• Wiring Scheme: T568B
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°F): -40
• Boot Color: Clear
• Color: Blue
• Flammability Rating: CM
• Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
• IEC Variant: 60603-7
• PoE Compatibility: PoE, PoE+, PoE++
• Plug Type: 8 Position

Packaging Details

• UPC: 07498317093
• GTIN Package: 00074983170937
• Standard Package Volume Ft3: 0.0240
• Standard Package Weight Pounds: 0.1926
• Std Package Height In: .95
• Std Package Height MM: 24.13
• Std Package Length In: 9.05
• Std Package Length MM: 229.87
• Std Package Width In: 8.15
• Std Package Width MM: 207.01
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983170932
• Standard Carton Volume Ft3: 0.0240
• Standard Carton Weight Pounds: 1.9256
• Std Carton Height In: 3.9
• Std Carton Height MM: 99.06
• Std Carton Length In: 11.05
• Std Carton Length MM: 229.87
• Std Carton Width In: 9
• Std Carton Width MM: 228.6
• Std Ctn Qty: 10
• Min. Order UOM: Piece
• Country of Origin 2Digit: CN,CR
• RoHS Compliant: Compliant
• EAN: 00074983170937
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1
