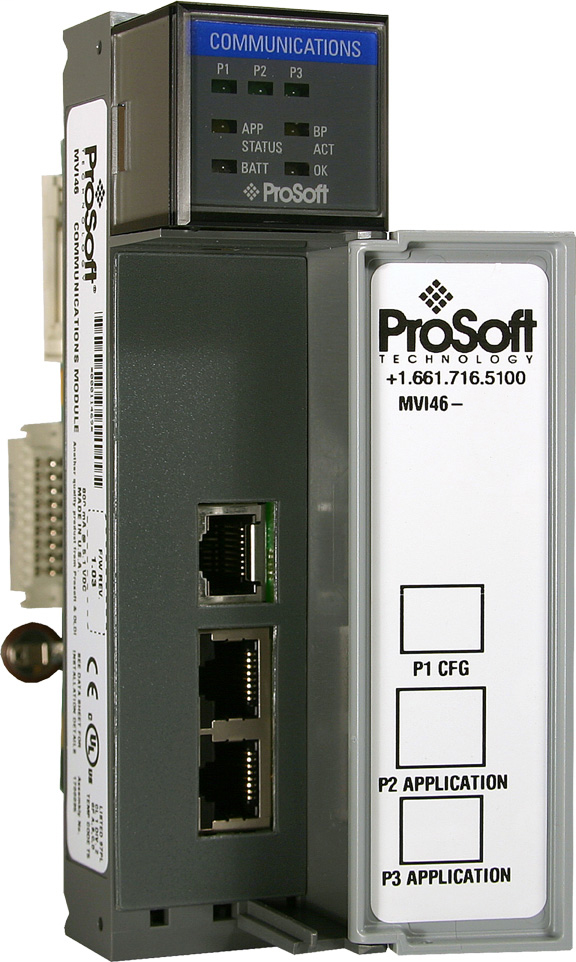

PROSOFT MVI46-GSC GENERIC ASCIISERIAL COMMUNICATION MODULE
$4,205.38/ea
Usually ships within 16 to 26 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Prosoft Technology, Inc.
Mfg Catalog # MVI46-GSC
North Coast Part # 494744

Features and Benefits

  • The MVI46-GSC module is a single slot, backplane compatible solution for the Rockwell Automation SLC platform. This module has two powerful and fully configurable ASCII communication ports, each supporting the sending and receiving of large ASCII character strings. With the implementation of some supporting ladder logic in the processor, the many different devices supporting ASCII communications can be integrated into the SLC platform.

Applications

  • The MVI46-GSC module is the ideal solution for the many applications where ASCII character communications must be added to the SLC platform. Applications using the MVI46-GSC module can be found in many industrial sectors generally involving the following applications:
  • Bar code scanner interfaces
  • Weigh scale interfaces
  • Legacy ASCII protocol connections
  • Terminal port emulation
  • Printer driver (alarm/status printer)

Specifications

  • Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module using M0/M1 files
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included

Certifications

Overview

Family Brand Name Prosoft Technology
