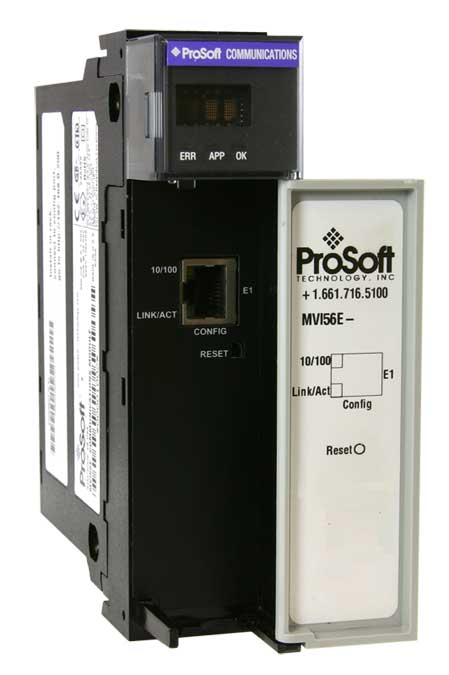

PROSOFT MVI56E-MNETCR MODBUS TCP/IPMASTER/SLAVE ENHANCED COMM

Features and Benefits

• Supports up to 30 Clients: Faster response for multi server applications
• Supports up to 30 Clients: Reduces network traffic
• Supports up to 30 Clients: Minimizes impact to other server communications when one server device goes off-line
• RSLogix 5000 Integrated: The module communication is integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder file
• RSLogix 5000 Integrated: No additional PAC/PLC programming required
• Enable/Disable commands easily from ladder logic.: Programatically enable various networked devices and their functions to support multiple applications or recipes, without having to reconfigure the module
• Remotely configure and diagnose problems: Easy to use Windows-based configuration software connects through remote racks using EtherNet/IP and/or ControlNet via a 1756-EnxT and/or 1756-CNB interface module without requiring RSLinx OEM saving you money
• Remotely configure and diagnose problems: Allows support of IT and Automation network segmentation
• Web-enabled Ethernet port: The module has a built-in web server for easy access to documentation, module status, and to update firmware
• MVI56 backward compatible: Assists in extending current MVI56 applications by using newer technology that supports existing MVI56 ladder logic and module configuration

Specifications

• Backward compatible with previous MVI56-MNETCR versions
• Single-slot 1756 ControlLogix backplane compatible
• 10/100 Mbps auto crossover detection Ethernet configuration and application port
• User-definable module data memory mapping of up to 5000, 16-bit registers
• ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
• Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
• Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
• 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English - no cryptic error or alarm codes to decipher
• ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
• Personality Module - a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration for easy disaster recovery, allowing quick in-the-field product replacement by transferring the CF card
