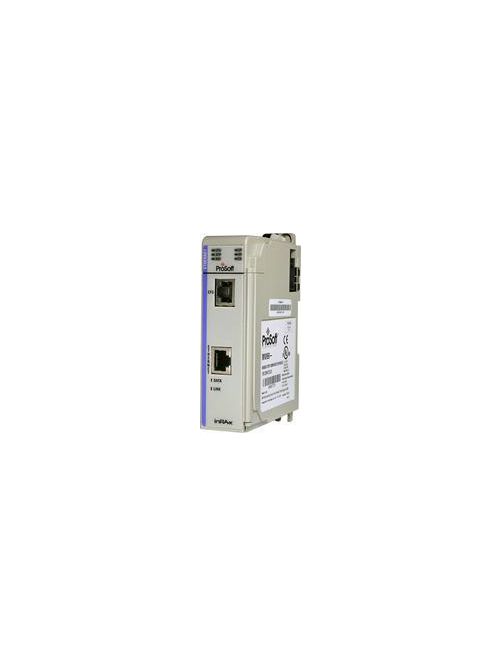

PROSOFT MVI69-MNETC MODBUS TCP/IPCOMMUNICATION MODULE - MULTI CLIENTONLY
Product image thumbnail 0
Product image thumbnail 1
$2,928.58/ea
Usually ships within 16 to 26 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Prosoft Technology, Inc.
Mfg Catalog # MVI69-MNETC
North Coast Part # 544492

Features and Benefits

  • Support for the storage and transfer of up to 5000 registers to/from the PLC processor using the block transfer interface
  • User-definable module memory usage
  • 10/100 Base-T Ethernet-compatible interface
  • All data mapping begins at Modbus register 40001
  • Configurable parameters for the Client, including a minimum response delay of 0 to 65535 milliseconds
  • Floating-point support for Enron, DanielsĀ®, and other floating-point data types
  • Single-Slot, 1769 backplane-compatible
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processorand module.
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included.
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.
  • Supports all CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x.

Applications

  • With the growing trend of Ethernet technology in the industrial marketplace, this product has a wide variety of application uses.
  • Food processing
  • Petrochemical
  • Pulp and paper
  • Automobile manufacturing
  • Water and Wastewater
  • Oil and Gas
  • Power and Electric

Specifications

  • Single Slot - 1769 backplane compatible
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
  • Ladder Logic is used for data transfer between module and processor. Sample ladder file included.
  • Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.
  • Supports all CompactLogix processors: L20/L23/L30/L31/L32/L35, L43 and L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)
  • Also supports MicroLogix 1500 LRP

Certifications

Overview

Family Brand Name Prosoft Technology
