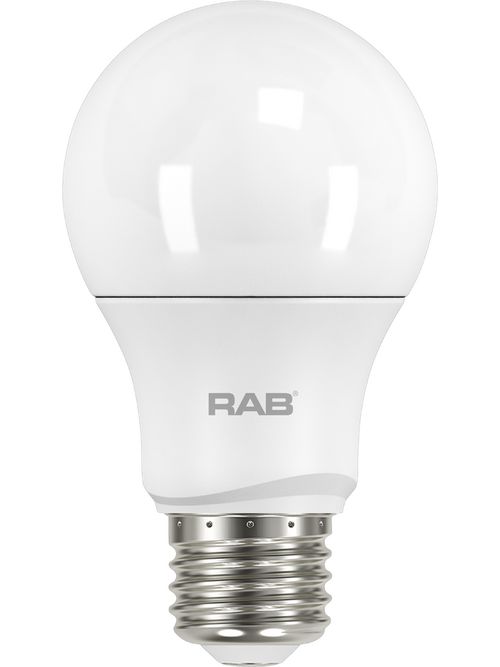

RAB A19-10-E26-830-DIM LED A19 10W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.02/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # A19-10-E26-830-DIM
North Coast Part # 1680088

Features

  • REPLACE conventional halogen and incandescent bulbs
  • ENERGY SAVINGS - Save up to 85% on energy
  • DAMP RATED - Suitable for damp locations
  • 15,000-HOUR LIFESPAN - Last up to 13.7 years at 3 hours per day
  • ENCLOSED FIXTURE RATED - May be used in both enclosed and open fixtures
  • SHATTERPROOF - Plastic lamps for rugged applications
  • 80 CRI - Ideal for general lighting applications
  • DIMMABLE - Compatible with most common dimmer models

Specifications

Performance

  • Watts: 10W
  • Color Temp: 3000K (Warm White)
  • Lumens: 800
  • Efficacy: 80 lm/W
  • Color Accuracy: 80 CRI
  • L70 Lifespan: 15,000 hours
  • Input Voltage: 120V
  • Power Factor: ≥0.7

Dimensions

  • Weight: 0.1 lbs

Technical Specifications

  • Product Type: A-Line
  • Bulb Shape: A19
  • Wattage: 10W
  • Wattage Equivalency: 60W Incandescent
  • Typical Lumen Output: 800
  • Efficacy: 80 lm/W
  • Color Temperature: 3000K Warm White
  • CRI: 80
  • Base Type: E26
  • L70 Lifespan: 15,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: Yes, down to 10%
  • Beam Angle: 230°
  • Warranty: 3-Year, No-Compromise Warranty
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120V
  • Power Factor: ≥0.7
  • Operating Frequency: 60 Hz
  • Input Current @ 120V: 101mA

Listings

  • UL Listed: Yes
  • Energy Star ID: 2329697
  • CEC Status: Not lawful for sale in California

Overview

GTiN 00019813748207
Warranty Length 3 yr
Color 3000 K
Operating Temperature -20 C
Voltage 120 Volt
Type LAMPS
Weight 0.1 lb
Wattage 10 Watt
Color Temperature 3000 K
Color Accuracy 80 CRI
Lumens 800 lm
Base E26
Input Voltage 120 V
Shape A19
Family Brand Name Rab Design Lighting
Dimmable? Yes
Beam Spread 230 degrees
Average Rated Life 15,000 hr
Power Factor ?0.7
Efficacy 80 LPW
Color Rendering Index 80 CRI
Product UPC 01981374820
