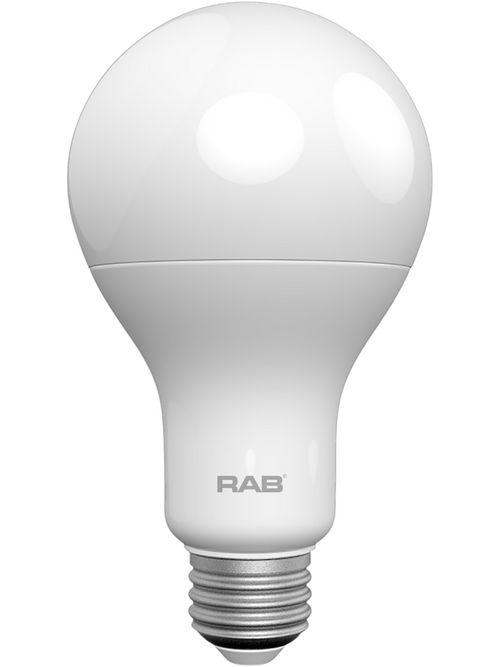

RAB A21-17-E26-940-DIM LED A21 17W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # A21-17-E26-940-DIM
North Coast Part # 1688303

Features

  • REPLACE conventional halogen and incandescent bulbs
  • ENERGY SAVINGS - Save up to 85% on energy
  • DAMP RATED - Suitable for damp locations
  • ENCLOSED FIXTURE RATED - May be used in both enclosed and open fixtures
  • SHATTERPROOF - Plastic lamps for rugged applications
  • 90 CRI - Produces rich and vibrant colors
  • DIMMABLE - Compatible with most common dimmer models

Specifications

Performance

  • Watts: 17W
  • Color Temp: 4000K (Cool White)
  • Lumens: 1,600
  • Efficacy: 94.1 lm/W
  • Color Accuracy: 90 CRI
  • L70 Lifespan: 25,000 hours
  • Input Voltage: 120V
  • Power Factor: 0.9
  • Flicker: <30%
  • R9: 50

Dimensions

  • Weight: 0.3 lbs

Technical Specifications

  • Product Type: A-Line
  • Bulb Shape: A21
  • Wattage: 17W
  • Wattage Equivalency: 100W Incandescent
  • Typical Lumen Output: 1600
  • Efficacy: 94 lm/W
  • Color Temperature: 4000K Cool White
  • CRI: 90
  • Base Type: E26
  • L70 Lifespan: 25,000 hours
  • Operating Temperature: -20°C - 45°C
  • Dimmable: Yes, down to 10%
  • Beam Angle: 230°
  • Warranty: 4-Year, No-Compromise Warranty
  • For Use in Emergency Fixtures: No
  • For Use Outdoors in Open Fixtures: No

Electrical Characteristics

  • Input Voltage: 120V
  • Power Factor: 0.9
  • Operating Frequency: 60 Hz
  • Flicker: <30%

Listings

  • UL Listed: Yes
  • Energy Star ID: 2330076
  • CEC Status: Not lawful for sale in California

Overview

GTiN 00019813748139
Warranty Length 4 yr
Color 4000 K
Operating Temperature -20 C
Voltage 120 Volt
Type LAMPS
Weight 0.3 lb
Wattage 17 Watt
Color Temperature 4000 K
Color Accuracy 90 CRI
Lumens 1600 lm
Base E26
Input Voltage 120 V
Shape A21
Family Brand Name Rab Design Lighting
Dimmable? Yes
Beam Spread 230 degrees
Average Rated Life 25,000 hr
Power Factor 0.9
Efficacy 94 LPW
Color Rendering Index 90 CRI
Product UPC 01981374813
