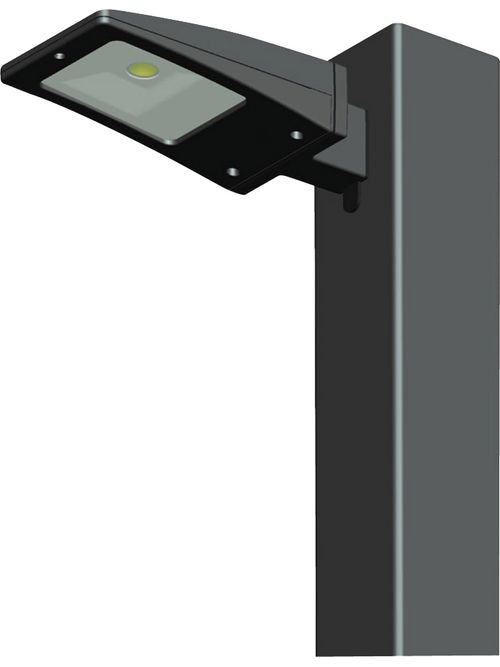

RAB ALED13 LED AREA LIGHT 13W COOL
Product image thumbnail 0
Product image thumbnail 1
$433.84/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALED13
North Coast Part # 665553

Features

  • High output LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins

Specifications

Performance

  • Watts: 13W
  • Color Temp: 5000K (Cool)
  • Lumens: 1,530
  • Efficacy: 100.7 lm/W
  • Color Accuracy: 73 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.13A
  • 208V: 0.08A
  • 240V: 0.07A
  • 277V: 0.06A
  • Input Watts: 15.20W

Dimensions

  • Weight: 3.8 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • Dark Sky Conformance: Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PA5P7293

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
  • Housing: Precision die cast aluminum housing, lens frame
  • Gaskets: High-temperature silicone
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Effective Projected Area: EPA = 0.2
  • Maximum Ambient Temperature: Suitable for use in 55°C (131°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)

Electrical

  • Driver: Multi-chip 13W high output long life LED Driver Constant Current, Class 2 100V - 277V, 50/60 Hz
  • THD: 10.4% at 120V, 16.7% at 277V
  • Power Factor: 98.8% at 120V, 92.6% at 277V
  • Surge Protection: 4kV

Other

  • Patents: The design of the ALED is protected by patents pending in Canada, U.S., China and Taiwan.
  • Equivalency: Equivalent to 70W Pulse Start Metal Halide
  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G0

Overview

UPC 01981302685
GTiN 00019813026855
Finish Bronze
Voltage 100-240 Volt
Type AREA Light
Applications OUTDOOR
Mounting Type 10
Weight 3.8 lb
Wattage 13 Watt
Color Temperature 5000 K
Color Accuracy 73 CRI
Lumens 1530 lm
Family Brand Name Rab Design Lighting
Lamp Type LED
Fixture Type LED Area Lights
Amperage 0.06 Amp
Average Rated Life 100,000 hr
Input Wattage 15.20 W
Power Factor 92.6% At 277V,98.8% At 120V
Efficacy 100.7 LPW
Total Harmonic Distortion 10.4% At 120V,16.7% At 277V
