RAB ALED26Y LED AREA LIGHT 26W WARM
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$525.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALED26Y
North Coast Part # 827297

Features

  • High output LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins

Specifications

Performance

  • Watts: 26W
  • Color Temp: 3000K (Warm)
  • Lumens: 3,265
  • Efficacy: 110.7 lm/W
  • Color Accuracy: 70 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 0.26A
  • 208V: 0.16A
  • 240V: 0.14A
  • 277V: 0.12A
  • Input Watts: 29.50W

Dimensions

  • Weight: 6.3 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • Dark Sky Conformance: Conforms to (allows for conformance to) the requirements for the IDA's "Fixture Seal of Approval" as of March 1, 2016.
  • DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P0000175Q

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • Lumen Maintenance: The LED will deliver 70% of its initial lumens at 100,000 hours of operation
  • Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
  • Housing: Precision die cast aluminum housing, lens frame
  • Gaskets: High-temperature silicone
  • Effective Projected Area: EPA = 0.27.
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Ambient Temperature: Suitable For use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Patents: The ALED design is protected by U.S. PATENT D608,040 and patents pending in the U.S., Canada, China, Taiwan and Mexico.
  • Equivalency: Equivalent to 125W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

  • BUG Rating: B1 U0 G0

Electrical

  • Driver: Multi-chip 26W high output long life LED Driver Constant Current, 720mA, Class 2, 6kV Surge Protection, 100V-277V, 50-60 Hz, 100-240V.4 Amps.
  • THD: 9.16% at 120V, 10.34% at 277V
  • Power Factor: 99.4% at 120V, 92.6% at 277V

Overview

UPC 01981315975

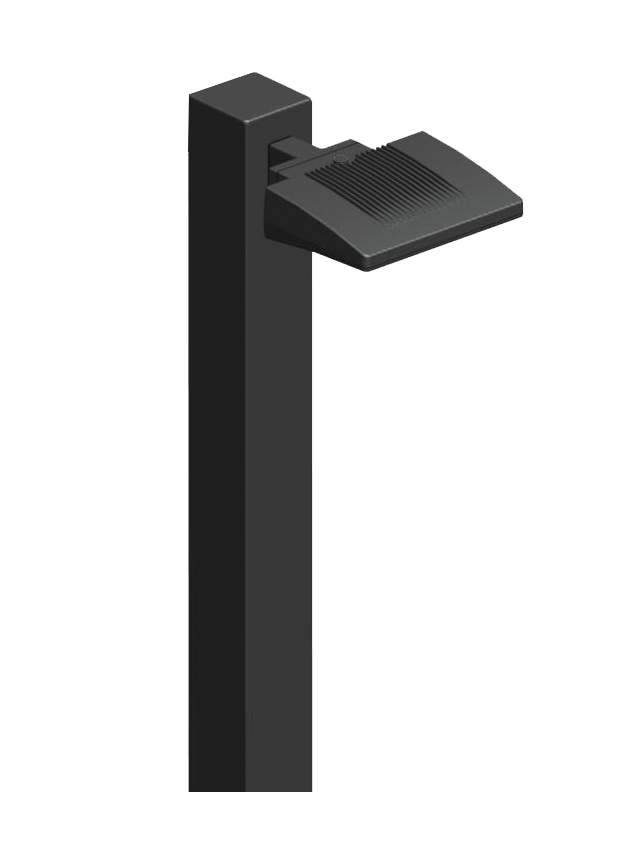

Item Long Description LED Area Light 26W, 3000k, LED with Square Pole Mount Adaptor, Bronze
GTiN 00019813159751
Finish Bronze
Voltage 120/277 Volt
Type AREA Light
Applications OUTDOOR
Weight 6.3 lb
Wattage 26 Watt
Color Temperature 3000 K
Color Accuracy 70 CRI
Lumens 3265 lm
Family Brand Name Rab Design Lighting
Amperage 0.12 Amp
Average Rated Life 100,000 hr
Input Wattage 29.50 W
Power Factor 92.6% At 277V,99.4% At 120V
Efficacy 110.7 LPW
Total Harmonic Distortion 10.34% At 277V,9.16% At 120V
