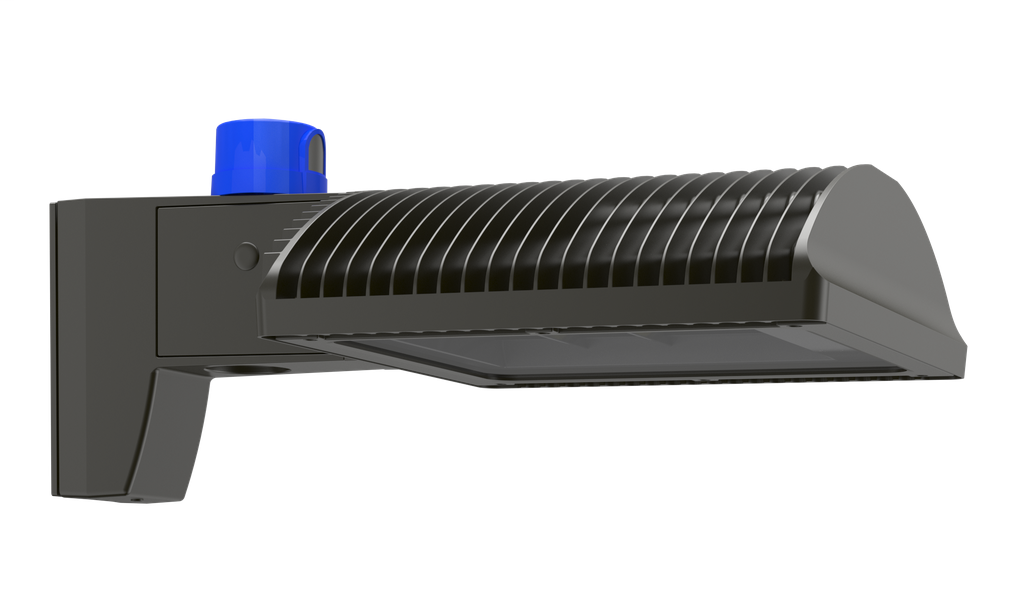

RAB ALED2T105/PCT ALED105 T II 8" C

$1,306.76/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

THD: 7.6% at 120V, 16.4% at 277V
Power Factor: 99.6% at 120V, 94.4% at 277V
Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection: 4kV

DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: P05RRWYU
UL Listing: Suitable for wet locations
IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Dark Sky Conformance: Conforms to (allows for conformance to) the IDA's fully shielding requirement, emitting no light above 90 degrees (with the exclusion of incidental light reflecting from fixture housing, mounts, and pole).

Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
LEDs: Multi-chip, high-output, long-life LEDs
Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

IES Classification: The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.
Effective Projected Area: EPA = 0.75
Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
Thermal Management: Superior thermal management with external "Air-Flow" fins
Lens: Tempered glass lens
Housing: Die-cast aluminum housing, lens frame and mounting arm
Mounting: Universal mounting arm compatible for hole spacing patterns from 1" to 5 1/2" center to center. Round Pole Adaptor plate included as a standard. Easy slide and lock to mount fixture with ease. Round pole diameter must be >4" to mount fixtures at 90° orientation.
Reflector: Specular vacuum-metallized polycarbonate
Gaskets: High-temperature silicone gaskets
IP Rating: Ingress Protection rating of IP66 for dust and water
Finish: Formulated for high durability and long-lasting color
Green Technology: Mercury and UV free. RoHS-compliant components.

Compatibility: Compatible with Round Poles with a diameter of 2.5" to 6"
Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
Equivalency: Replaces 320W Metal Halide
Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
