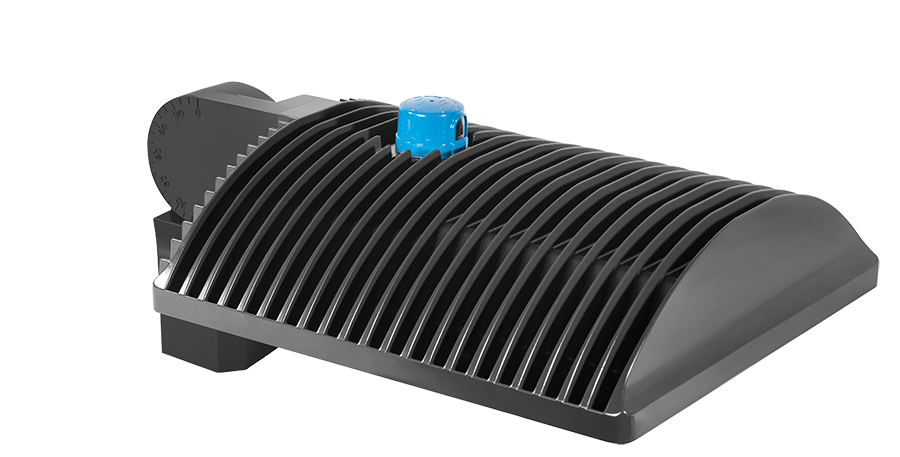

RAB ALED3T260SF/D10/PCT ALED260 TII
$2,167.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer RAB Lighting
Mfg Catalog # ALED3T260SF/D10/PCT
North Coast Part # 1687478

Features

  • 66% energy cost savings vs. HID
  • 100,000-hour LED lifespan
  • 5-Year, No-Compromise Warranty

Specifications

Performance

  • Watts: 260W
  • Color Temp: 5000K (Cool)
  • Lumens: 28,037
  • Efficacy: 107.2 lm/W
  • Color Accuracy: 70 CRI
  • L70 Lifespan: 100,000 hours
  • Type: Constant Current
  • 120V: 2.2A
  • 208V: 1.3A
  • 240V: 1.1A
  • 277V: 1.0A
  • Input Watts: 261.50W

Dimensions

  • Weight: 75.0 lbs

Listings

  • UL Listing: Suitable for wet locations
  • IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
  • DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PMH55PPR

LED Characteristics

  • Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
  • LEDs: Multi-chip, high-output, long-life LEDs
  • Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5-year period
  • Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

  • IES Classification: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
  • Effective Projected Area: EPA = 5
  • Maximum Ambient Temperature: Suitable for use in 40°C (104°F)
  • Cold Weather Starting: Minimum starting temperature is -40°C (-40°F)
  • Thermal Management: Superior thermal management with external "Air-Flow" fins
  • Lens: Tempered glass lens included
  • Housing: Die cast aluminum with airflow fins for cooling
  • Mounting: Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
  • IP Rating: Ingress Protection rating of IP66 for dust and water
  • Reflector: Vacuum-metalized polycarbonate
  • Gaskets: High-temperature silicone gaskets
  • Finish: Formulated for high durability and long-lasting color
  • Green Technology: Mercury and UV free. RoHS-compliant components.

Electrical

  • Drivers: Constant Current, Class 1, 1660mA, 100-277V, 50-60Hz, 120V: 2.2A, 208V: 1.3A, 240V: 1.1A, 277V: 1.0A
  • Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
  • Surge Protection: 4kV For areas prone to surges, upgrade to 10kV surge protection.
  • Photocell: 120-277V twistlock photocell included. Photocell is compatible with 120-277V.

Other

  • Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at
  • Equivalency: Equivalent to 875W Pulse Start Metal Halide
  • Buy American Act Compliance: RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Overview

UPC 01981342995
GTiN 00019813429953
Finish Bronze
Voltage 120/277 Volt
Type AREA Light
Applications OUTDOOR
Weight 75.0 lb
Wattage 260 Watt
Color Temperature 5000 K
Color Accuracy 70 CRI
Lumens 28,037 lm
Family Brand Name Rab Design Lighting
Amperage 1 Amp
Average Rated Life 100,000 hr
Input Wattage 261.50 W
Efficacy 107.2 LPW
